Caution / Notice / Hint

COMPONENTS (DISASSEMBLY)

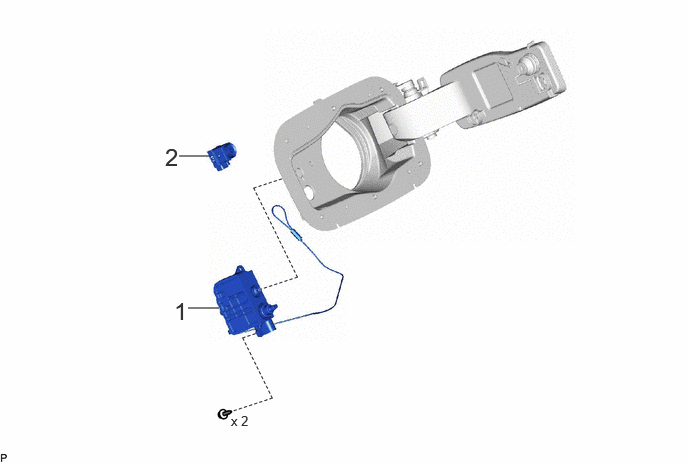

Fig 1: Charge Lid Opener Unit Disassembly Components
GTY1231310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 CHARGING PORT OPENING LID WITH MOTOR LOCK ASSEMBLY 77030D - - -
2 EV CHARGER LID INDICATOR G90H1 - - -
