Removal [12/2023 - ]: Procedure

  1. REMOVE BATTERY CHARGER CONNECTOR OPENING LID SUB-ASSEMBLY

    Refer to REMOVAL [12/2023 - ]

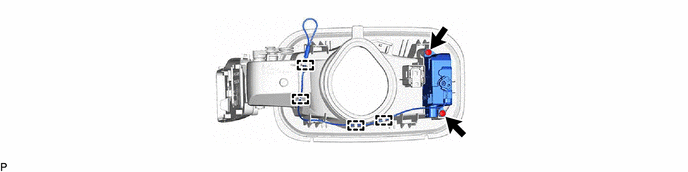

  2. REMOVE CHARGING PORT OPENING LID WITH MOTOR LOCK ASSEMBLY
    1. GTY1236181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
