Caution / Notice / Hint

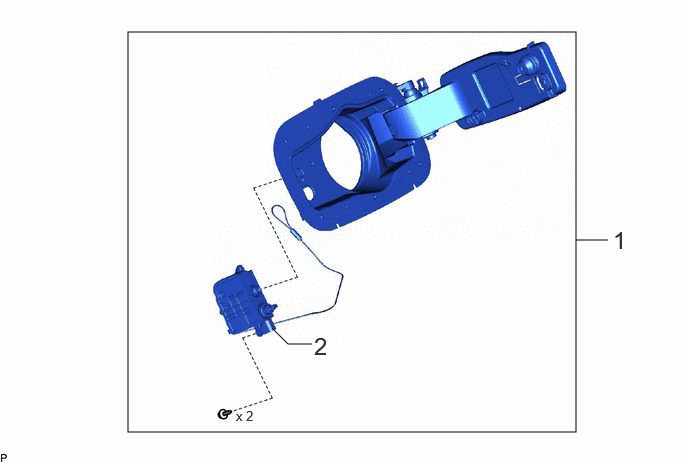

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during battery charger connector opening lid sub-assembly removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Replacement of service plug grip | High voltage fuse accumulated load history reset | DTCs are stored | Refer to UTILITY [12/2023 - ] |
WARNING:
- Orange wire harnesses and connectors indicate high-voltage circuits. To prevent electric shock, always follow the procedure described in the appropriate service information
.
Refer to PRECAUTION [09/2023 - ]
- To prevent electric shock, wear insulated gloves when working on wire harnesses and components of the high voltage system.
NOTE:
- After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
- To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.
HINT:
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
LEARNING COMPLETES WHEN VEHICLE IS DRIVEN
| Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|
| Stop and Start System | Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted. | Refer to PRECAUTION [09/2023 - ] |
| Lighting System (w/ Automatic Headlight Beam Level Control System) | Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. | Refer to INITIALIZATION [09/2023 - ] |
| Front Camera System | ||
| Adaptive High Beam System |
LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY
| Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|
| Power Back Door System | Reset back door close position | Refer to INITIALIZATION [09/2023 - ] |
| Air Conditioning System | After the ignition switch is turned to ON, the servo motor standard position is recognized. | - |
