Inspection [12/2023 - ]: Procedure
- CHARGING PORT OPENING LID WITH MOTOR LOCK ASSEMBLY
- Check the operation of the charging port opening lid with motor lock assembly (motor operation).
- Apply auxiliary battery voltage to the charging port opening lid with motor lock assembly connector, and check the operation of the charging port opening lid with motor lock assembly.

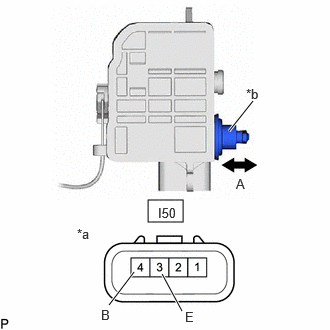

A Shaft Stroke *a Component without harness connected
(Charging Port Opening Lid with Motor Lock Assembly)*b Shaft OK
Tester Connection Specified Condition I50-4 (B) - Auxiliary battery positive (+)
I50-3 (E) - Auxiliary battery negative (-)Shaft not extended
(Unlock)I50-3 (E) - Auxiliary battery positive (+)
I50-4 (B) - Auxiliary battery negative (-)Shaft extended
(Lock) - If the result is not as specified, replace the charging port opening lid with motor lock assembly.
- Apply auxiliary battery voltage to the charging port opening lid with motor lock assembly connector, and check the operation of the charging port opening lid with motor lock assembly.
- Measure the shaft stroke.
OK
Area Condition Specified Condition A Lever pulled 22.4 to 40 mm (0.882 to 1.57 in.) - If the result is not as specified, replace the charging port opening lid with motor lock assembly.
- Check the operation of the charging port opening lid with motor lock assembly (motor operation).
