Inspection [12/2023 - ]: Procedure
- INSPECT CHARGING PORT OPENING LID WITH MOTOR LOCK ASSEMBLY
- Check the operation of the charging port opening lid with motor lock assembly.
- Measure the resistance according to the value(s) in the table below.

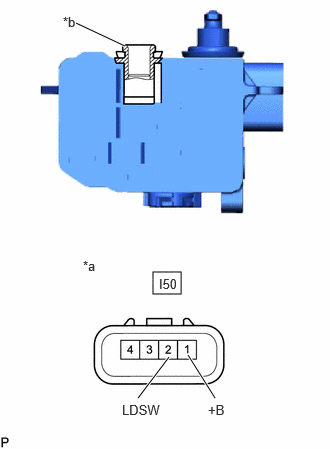

*a Component without harness connected
(Charging Port Opening Lid with Motor Lock Assembly)*b Push Lifter Standard Resistance
Tester Connection Condition Specified Condition Result I50-1 (+B) - I50-2 (LDSW) Not pushed (ON) 10 kΩ or higher kΩ I50-1 (+B) - I50-2 (LDSW) Pushed (OFF) Below 1 Ω Ω - If the result is not as specified, replace the charging port opening lid with motor lock assembly.
- Measure the resistance according to the value(s) in the table below.
- Check the operation of the charging port opening lid with motor lock assembly.
