Caution / Notice / Hint

COMPONENTS (REASSEMBLY)

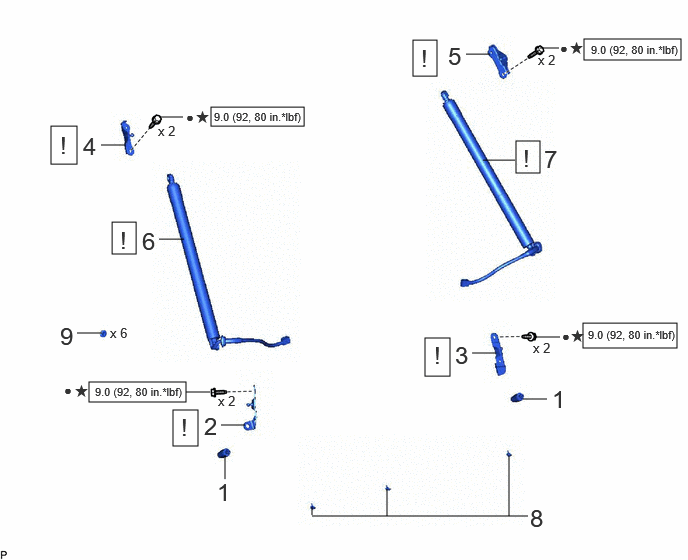

Fig 1: Back Door Reassembly Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	BACK DOOR PANEL CUSHION	67005B	-	-	-
2	BACK DOOR DAMPER STAY LOWER BRACKET LH	68948	See step 2	-	-
3	BACK DOOR DAMPER STAY LOWER BRACKET RH	68947	See step 3	-	-
4	BACK DOOR DAMPER STAY UPPER BRACKET LH	68946	See step 4	-	-
5	BACK DOOR DAMPER STAY UPPER BRACKET RH	68945	See step 5	-	-
6	POWER BACK DOOR UNIT SET ASSEMBLY LH	68920	See step 6	-	-
7	POWER BACK DOOR UNIT SET ASSEMBLY RH	68910A	See step 7	-	-
8	BACK DOOR DUST PROOF SEAL	67837N	-	-	-
9	HOLE PLUG	-	-	-	-

	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
*	Precoated part	-	-

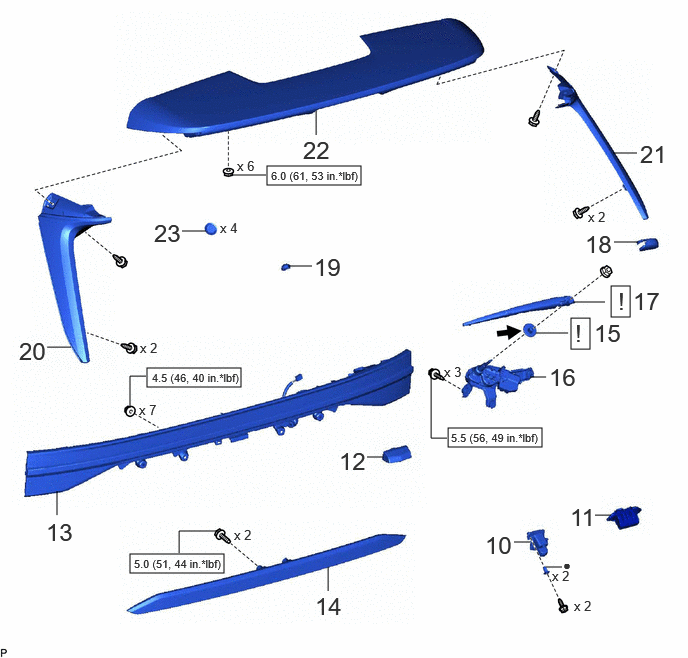

Fig 2: Back Door Reassembly Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
10	REAR TELEVISION CAMERA ASSEMBLY	86790D	-	-	-
11	BACK DOOR OPENER SWITCH ASSEMBLY	84840G	-	-	-
12	LICENSE PLATE LIGHT ASSEMBLY	81270	-	-	-
13	REAR LIGHT ASSEMBLY	81580A	-	-	-
14	BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY	76801	-	-	-
15	REAR WIPER MOTOR GROMMET	85143R	See step 15	-	-
16	REAR WIPER MOTOR ASSEMBLY	85110R	-	-	-
17	REAR WIPER ARM AND BLADE ASSEMBLY	-	See step 17	-	-
18	REAR WIPER ARM HEAD CAP	85292A	-	-	-
19	REAR WASHER NOZZLE	85345R	-	-	-
20	REAR SIDE SPOILER SUB-ASSEMBLY LH	76088B	-	-	-
21	REAR SIDE SPOILER SUB-ASSEMBLY RH	76087B	-	-	-
22	REAR SPOILER SUB-ASSEMBLY	76085	-	-	-
23	HOLE PLUG	-	-	-	-

	N.m (kgf/cm, ft.lbf): Specified torque		MP grease
•	Non-reusable part	-	-

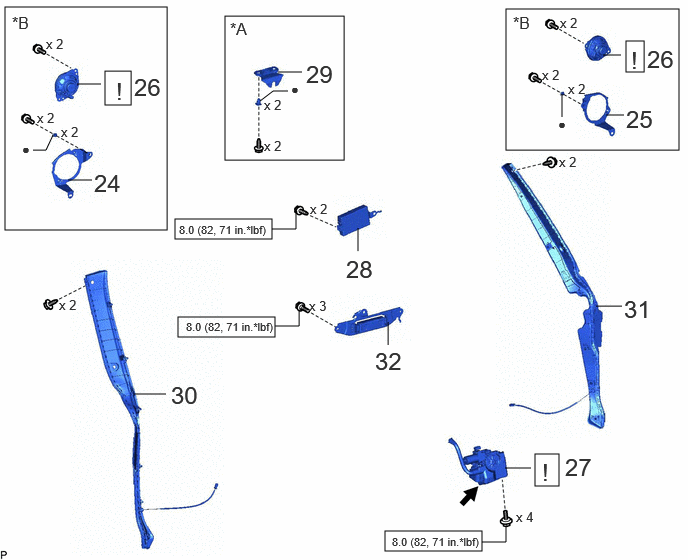

Fig 3: Back Door Reassembly Components With Torque Specifications (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
24	STEREO SPEAKER BRACKET RH	86111A	-	-	-
25	STEREO SPEAKER BRACKET LH	86112A	-	-	-
26	REAR NO. 2 SPEAKER ASSEMBLY	86160Y	See step 26	-	-
27	BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH	69350P	See step 27	-	-
28	MULTIPLEX NETWORK DOOR ECU	89222A	-	-	-
29	REAR INNER MIRROR CAMERA ASSEMBLY	867C0B	-	-	-
30	POWER BACK DOOR SENSOR ASSEMBLY LH	84280D	-	-	-
31	POWER BACK DOOR SENSOR ASSEMBLY RH	84270G	-	-	-
32	BACK DOOR WEIGHT	67372A	-	-	-

*A	w/ Digital Inner Mirror	*B	w/ Back Door Speaker
	N.m (kgf/cm, ft.lbf): Specified torque		MP grease

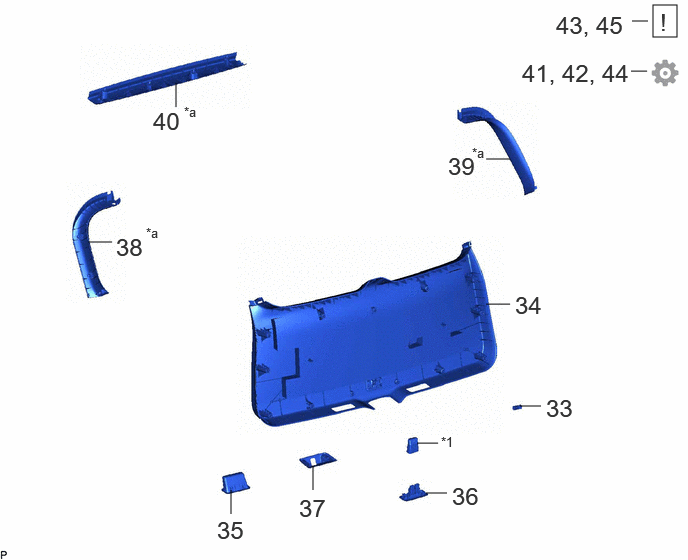

Fig 4: Back Door Reassembly Components (4 Of 4)

Procedure		Part Name Code
33	NO. 2 LUGGAGE COMPARTMENT LIGHT ASSEMBLY	81330A	-	-	-
34	BACK DOOR TRIM PANEL ASSEMBLY	64780A	-	-	-
35	BACK DOOR FINISH COVER LH	75838D	-	-	-
36	BACK DOOR FINISH COVER RH	75837D	-	-	-
37	BACK DOOR LOCK COVER	69321	-	-	-
38	BACK DOOR SIDE GARNISH LH	67938A	-	-	-
39	BACK DOOR SIDE GARNISH RH	67937B	-	-	-
40	BACK DOOR CENTER GARNISH	67939B	-	-	-
41	ADJUST REAR WASHER NOZZLE	85345R	-	-	See step 41
42	INITIALIZE POWER BACK DOOR SYSTEM	-	-	-	See step 42
43	INSPECT POWER BACK DOOR SYSTEM	-	See step 43	-	-
44	PERFORM CALIBRATION	-	-	-	See step 44
45	ADJUST BACK DOOR	-	See step 45	-	-

*1	DOOR CONTROL SWITCH COVER	-	-
*a	HINT: As the illustration shown is an example, the actual details may differ.	-	-
