Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during back door disassembly/reassembly are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Rear television camera assembly*1	Parking assist monitor system initialization Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System	Refer to CALIBRATION [09/2023 - ]
	Rear television camera view adjustment	Parking Support Brake System	Refer to CALIBRATION [09/2023 - ]
		Panoramic View Monitor System	Refer to CALIBRATION [09/2023 - ]
		Advanced Park	Refer to CALIBRATION [09/2023 - ]
	Camera cleaner setting operation*2	Multimedia switch is not displayed	Refer to PRECAUTION [09/2023 - ]
Multiplex network door ECU Power back door unit assembly set LH1 Power back door unit assembly set RH1	Reset back door close position	Power Back Door System	Refer to INITIALIZATION [09/2023 - ]
Replacement or removal and installation of 2 or more parts: Front television camera assembly, Radiator grille or Front bumper assembly Rear television camera assembly Side television camera assembly LH, Parking assist light LH or Outer rear view mirror assembly LH Side television camera assembly RH, Parking assist light RH or Outer rear view mirror assembly RH	Television camera view adjustment	Panoramic View Monitor System	Refer to CALIBRATION [09/2023 - ]

*1: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

*2: w/ Rear Camera Cleaner System

COMPONENTS (DISASSEMBLY)

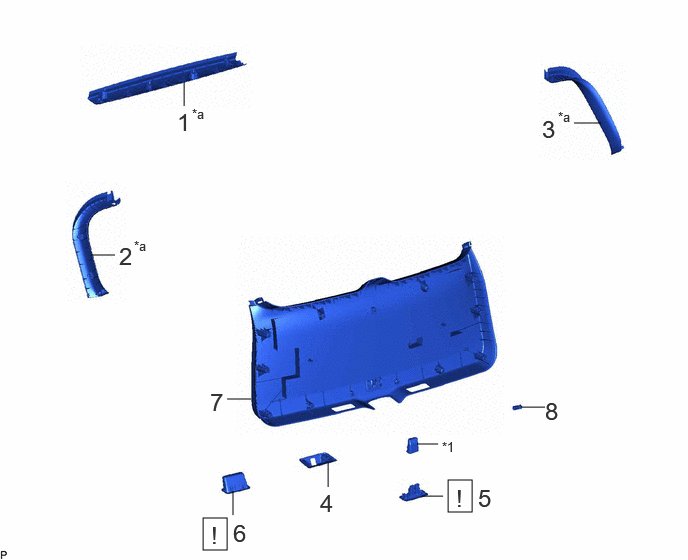

Fig 1: Back Door Disassembly Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	BACK DOOR CENTER GARNISH	67939B	-	-	-
2	BACK DOOR SIDE GARNISH LH	67938A	-	-	-
3	BACK DOOR SIDE GARNISH RH	67937B	-	-	-
4	BACK DOOR LOCK COVER	69321	-	-	-
5	BACK DOOR FINISH COVER RH	75837D	See step 5	-	-
6	BACK DOOR FINISH COVER LH	75838D	See step 6	-	-
7	BACK DOOR TRIM PANEL ASSEMBLY	64780A	-	-	-
8	NO. 2 LUGGAGE COMPARTMENT LIGHT ASSEMBLY	81330A	-	-	-

*1	DOOR CONTROL SWITCH COVER	-	-
*a	HINT: As the illustration shown is an example, the actual details may differ.	-	-

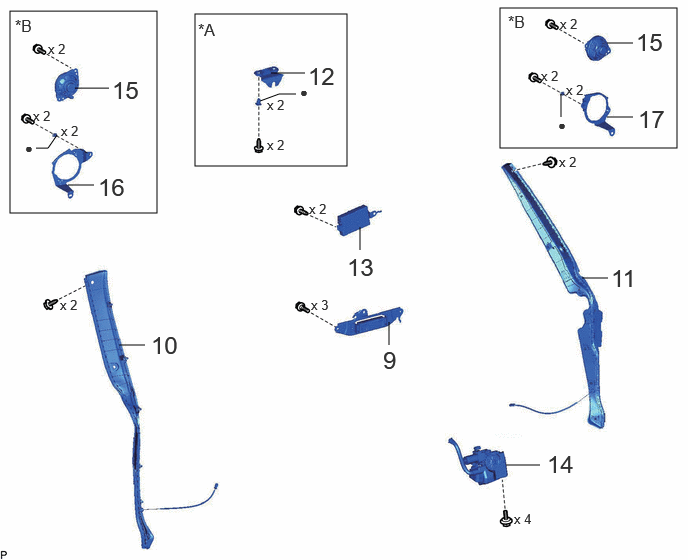

Fig 2: Back Door Disassembly Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
9	BACK DOOR WEIGHT	67372A	-	-	-
10	POWER BACK DOOR SENSOR ASSEMBLY LH	84280D	-	-	-
11	POWER BACK DOOR SENSOR ASSEMBLY RH	84270G	-	-	-
12	REAR INNER MIRROR CAMERA ASSEMBLY	867C0B	-	-	-
13	MULTIPLEX NETWORK DOOR ECU	89222A	-	-	-
14	BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH	69350P	-	-	-
15	REAR NO. 2 SPEAKER ASSEMBLY	86160Y	-	-	-
16	STEREO SPEAKER BRACKET LH	86112A	-	-	-
17	STEREO SPEAKER BRACKET RH	86111A	-	-	-

*A	w/ Digital Inner Mirror	*B	w/ Back Door Speaker
•	Non-reusable part	-	-

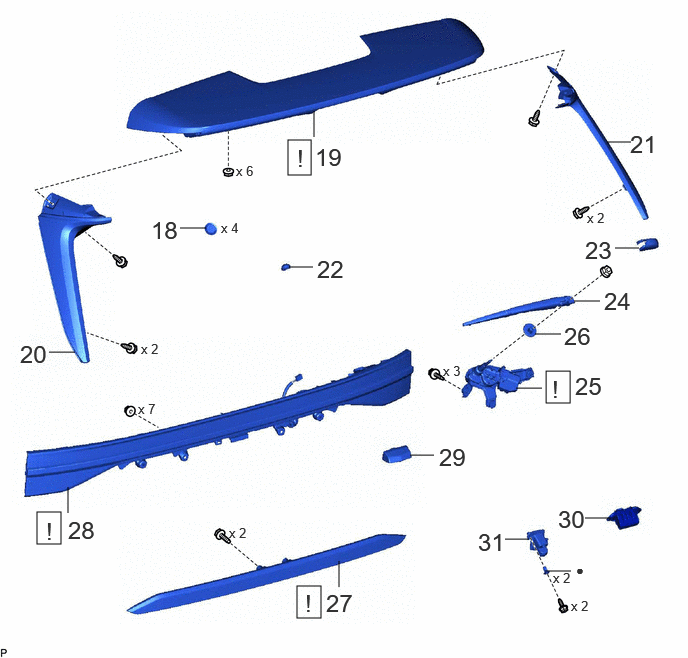

Fig 3: Back Door Disassembly Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
18	HOLE PLUG	-	-	-	-
19	REAR SPOILER SUB-ASSEMBLY	76085	See step 19	-	-
20	REAR SIDE SPOILER SUB-ASSEMBLY LH	76088B	-	-	-
21	REAR SIDE SPOILER SUB-ASSEMBLY RH	76087B	-	-	-
22	REAR WASHER NOZZLE	85345R	-	-	-
23	REAR WIPER ARM HEAD CAP	85292A	-	-	-
24	REAR WIPER ARM AND BLADE ASSEMBLY	-	-	-	-
25	REAR WIPER MOTOR ASSEMBLY	85110R	See step 25	-	-
26	REAR WIPER MOTOR GROMMET	85143R	-	-	-
27	BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY	76801	See step 27	-	-
28	REAR LIGHT ASSEMBLY	81580A	See step 28	-	-
29	LICENSE PLATE LIGHT ASSEMBLY	81270	-	-	-
30	BACK DOOR OPENER SWITCH ASSEMBLY	84840G	-	-	-
31	REAR TELEVISION CAMERA ASSEMBLY	86790D	-	-	-

•

Non-reusable part

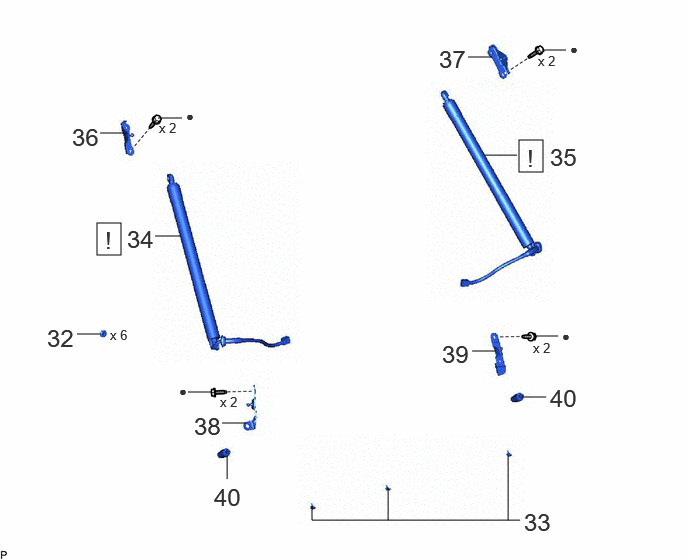

Fig 4: Back Door Disassembly Components (4 Of 4)

Procedure		Part Name Code
32	HOLE PLUG	-	-	-	-
33	BACK DOOR DUST PROOF SEAL	67837N	-	-	-
34	POWER BACK DOOR UNIT SET ASSEMBLY LH	68920	See step 34	-	-
35	POWER BACK DOOR UNIT SET ASSEMBLY RH	68910A	See step 35	-	-
36	BACK DOOR DAMPER STAY UPPER BRACKET LH	68946	-	-	-
37	BACK DOOR DAMPER STAY UPPER BRACKET RH	68945	-	-	-
38	BACK DOOR DAMPER STAY LOWER BRACKET LH	68948	-	-	-
39	BACK DOOR DAMPER STAY LOWER BRACKET RH	68947	-	-	-
40	BACK DOOR PANEL CUSHION	67005B	-	-	-

•

Non-reusable part
