Removal [09/2023 - ]: Procedure

  1. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [09/2023 - ]

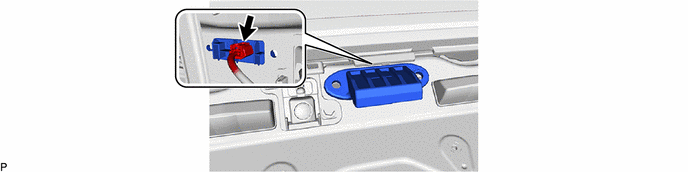

  2. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY
    1. GTY1237368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
