Inspection [09/2023 - ]: Procedure

  1. INSPECT BACK DOOR OPENER SWITCH ASSEMBLY
    1. Check the operation of the back door opener switch.

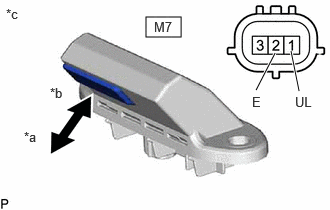

      GTY1237886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Not Pushed (OFF)
      *b Pushed (ON)
      *c Component without harness connected
      (Back Door Opener Switch Assembly)
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Switch Condition Specified Condition Result
        M7-1 (UL) - M7-2 (E) Back door opener switch pushed (ON) Below 1 Ω Ω
        M7-1 (UL) - M7-2 (E) Back door opener switch not pushed (OFF) 10 kΩ or higher kΩ

        If the result is not as specified, replace the back door opener switch assembly.

    2. Check the operation of the back door lock switch.

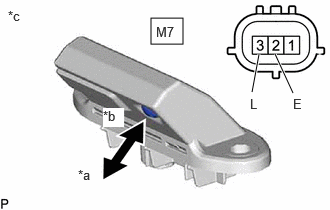

      GTY1231481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Not Pushed (OFF)
      *b Pushed (ON)
      *c Component without harness connected
      (Back Door Opener Switch Assembly)
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Switch Condition Specified Condition Result
        M7-3 (L) - M7-2 (E) Back door lock switch pushed (ON) Below 1 Ω Ω
        M7-3 (L) - M7-2 (E) Back door lock switch not pushed (OFF) 10 kΩ or higher kΩ

        If the result is not as specified, replace the back door opener switch assembly.
