Parts Location [09/2023 - 12/2023]: Illustration

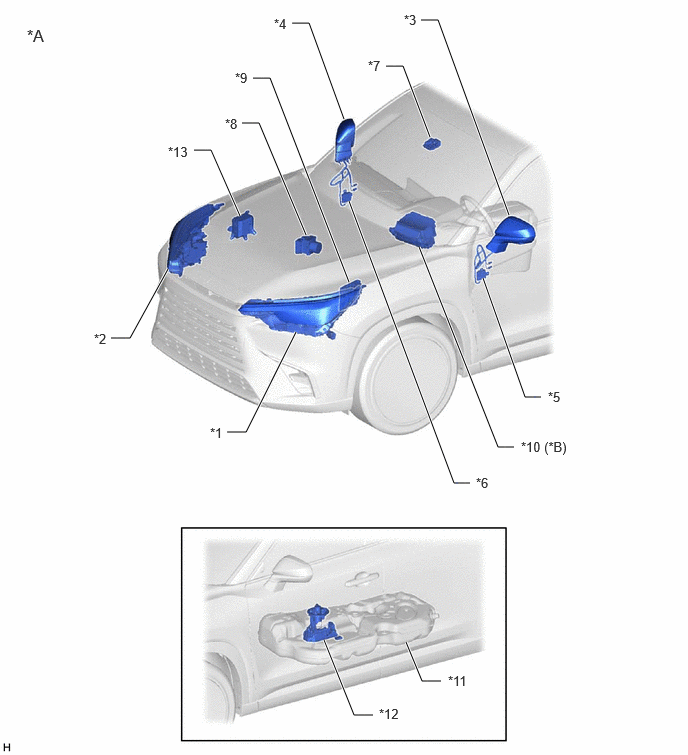

| *A | except Gasoline Model | *B | w/ Headup Display |
| *1 | HEADLIGHT ASSEMBLY LH | *2 | HEADLIGHT ASSEMBLY RH |
| *3 | OUTER REAR VIEW MIRROR ASSEMBLY LH - OUTER MIRROR ACTUATOR ASSEMBLY LH - SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
*4 | OUTER REAR VIEW MIRROR ASSEMBLY RH - OUTER MIRROR ACTUATOR ASSEMBLY RH - SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *5 | OUTER MIRROR CONTROL ECU ASSEMBLY LH | *6 | OUTER MIRROR CONTROL ECU ASSEMBLY RH |
| *7 | FORWARD RECOGNITION CAMERA | *8 | BRAKE ACTUATOR ASSEMBLY - NO. 2 SKID CONTROL ECU |
| *9 | ECM | *10 | METER MIRROR SUB-ASSEMBLY |
| *11 | FUEL TANK SUB-ASSEMBLY | *12 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - FUEL SENDER GAUGE ASSEMBLY |
| *13 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - STRG HTR FUSE (w/ Multiplex Network Steering ECU) |
- | - |

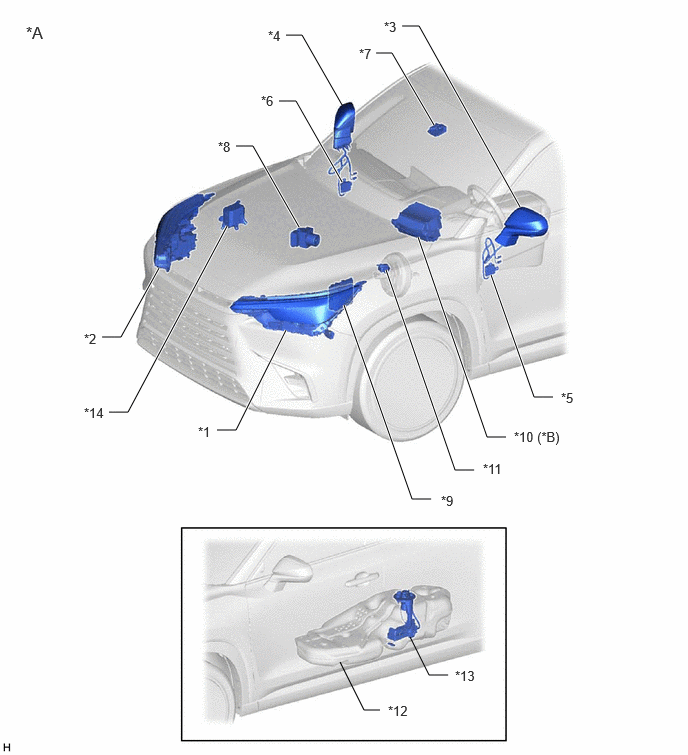

| *A | for Gasoline Model | *B | w/ Headup Display |
| *1 | HEADLIGHT ASSEMBLY LH | *2 | HEADLIGHT ASSEMBLY RH |
| *3 | OUTER REAR VIEW MIRROR ASSEMBLY LH - OUTER MIRROR ACTUATOR ASSEMBLY LH - SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
*4 | OUTER REAR VIEW MIRROR ASSEMBLY RH - OUTER MIRROR ACTUATOR ASSEMBLY RH - SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *5 | OUTER MIRROR CONTROL ECU ASSEMBLY LH | *6 | OUTER MIRROR CONTROL ECU ASSEMBLY RH |
| *7 | FORWARD RECOGNITION CAMERA | *8 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
| *9 | ECM | *10 | METER MIRROR SUB-ASSEMBLY |
| *11 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
*12 | FUEL TANK SUB-ASSEMBLY |
| *13 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - FUEL SENDER GAUGE ASSEMBLY |
*14 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - STRG HTR FUSE (w/ Multiplex Network Steering ECU) |

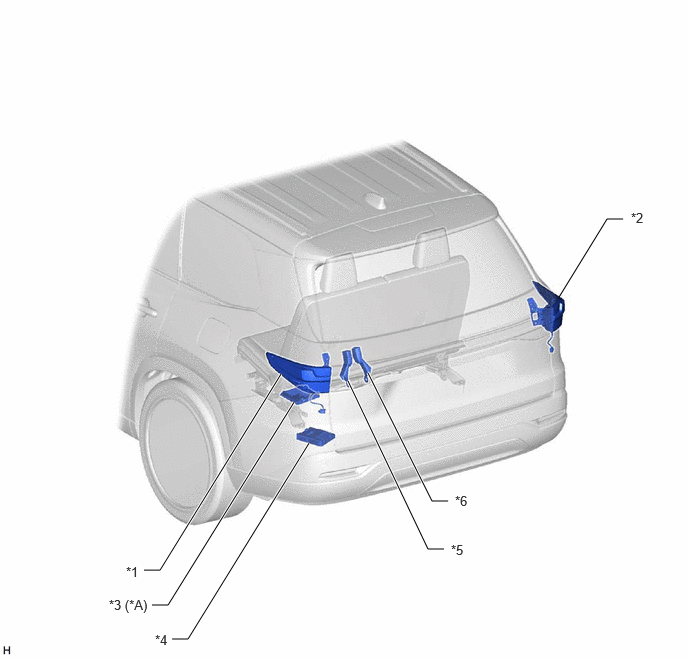

| *A | w/ Panoramic View Monitor System | - | - |
| *1 | REAR COMBINATION LIGHT ASSEMBLY LH | *2 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *3 | PARKING ASSIST ECU | *4 | STEREO COMPONENT AMPLIFIER ASSEMBLY |
| *5 | REAR NO. 2 SEAT INNER BELT ASSEMBLY LH | *6 | REAR NO. 2 SEAT INNER BELT ASSEMBLY RH |

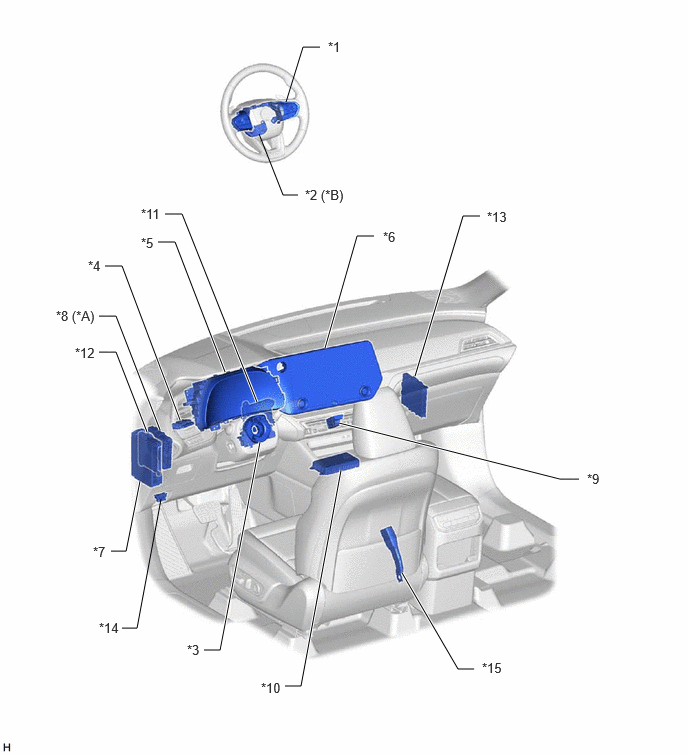

| *A | except Gasoline Model | *B | w/ Multiplex Network Steering ECU |
| *1 | STEERING PAD SWITCH ASSEMBLY | *2 | MULTIPLEX NETWORK STEERING ECU |
| *3 | SPIRAL CABLE SUB-ASSEMBLY | *4 | TRIP SWITCH - ODO/TRIP SWITCH - LIGHT CONTROL RHEOSTAT UP SWITCH - LIGHT CONTROL RHEOSTAT DOWN SWITCH |
| *5 | COMBINATION METER ASSEMBLY - MULTI-INFORMATION DISPLAY |
*6 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *7 | POWER DISTRIBUTION BOX ASSEMBLY - ECU-DCC NO. 3 FUSE - METER-IGR FUSE (except Gasoline Model) - HAZ FUSE - +BA NO. 1 FUSE (w/ Headup Display or Touch Tracer Operation) - ECU-IGR NO. 3 FUSE ((w/ Headup Display, except Gasoline Model) |
*8 | HYBRID VEHICLE CONTROL ECU |
| *9 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY | *10 | MOBILE WIRELESS CHARGER CRADLE ASSEMBLY |
| *11 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *12 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *13 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *14 | DLC3 |
| *15 | FRONT SEAT INNER BELT ASSEMBLY LH | - | - |
