Data List / Active Test [09/2023 - 12/2023]
- DATA LIST NOTE:
In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.
HINT:
Using the GTS to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.
- Read the Data List according to the display on the GTS.
- Combination Meter
HINT:
Depending on the specifications of the vehicle, some items may not be displayed.
for 12.3 Inch Display
Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note Total Distance Traveled Total distance traveled Min.: 0, Max.: 16777215 - - Total Distance Traveled - Unit Total distance traveled unit km or mile - - OTA Communication Event History Wireless communication event history OFF or ON OFF: No communication event history
ON: Has communication event history- ODO/TRIP Change Switch ODO/TRIP switch operation OFF or ON OFF: Switch released
ON: Switch pushed- Light Control Switch (UP) Light control rheostat up switch operation OFF or ON OFF: Switch released
ON: Switch pushed- Light Control Switch (DOWN) Light control rheostat down switch operation OFF or ON OFF: Switch released
ON: Switch pushed- Multi Switch (Up) Up switch on steering pad switch (w/o Touch Tracer Operation) operation OFF or ON OFF: Switch released
ON: Switch pushed- Multi Switch (Down) Down switch on steering pad switch (w/o Touch Tracer Operation) operation OFF or ON OFF: Switch released
ON: Switch pushed- Multi Switch (Left) Left switch on steering pad switch (w/o Touch Tracer Operation) operation OFF or ON OFF: Switch released
ON: Switch pushed- Multi Switch (Right) Right switch on steering pad switch (w/o Touch Tracer Operation) operation OFF or ON OFF: Switch released
ON: Switch pushed- Multi Switch (Enter) OK switch on steering pad switch (w/o Touch Tracer Operation) operation OFF or ON OFF: Switch released
ON: Switch pushed- Multi Switch (Back) Back switch on steering pad switch (w/o Touch Tracer Operation) operation OFF or ON OFF: Switch released
ON: Switch pushed- +B Voltage Auxiliary battery voltage
(Combination meter assembly input)Min.: 0.0 V, Max.: 25.5 V or Unset 11 to 14 V - Fuel Input Fuel level input Min.: 0.00 L, Max.: 655.35 L or Unset except Gasoline Model - Fuel receiver gauge indicates F:
61.83 L
- Fuel receiver gauge indicates 3/4:
51.07 L
- Fuel receiver gauge indicates 1/2:
43.64 L
- Fuel receiver gauge indicates 1/4:
28.79 L
- Fuel receiver gauge indicates E:
6.50 L
for Gasoline Model- Fuel receiver gauge indicates F:
65.74 L
- Fuel receiver gauge indicates 3/4:
53.04 L
- Fuel receiver gauge indicates 1/2:
45.32 L
- Fuel receiver gauge indicates 1/4:
29.89 L
- Fuel receiver gauge indicates E:
6.75 L
The detected value of the fuel sender gauge assembly is displayed. Vehicle Speed Meter Vehicle speed input Min.: 0 km/h (0 mph), Max.: 255 km/h (158 mph) or Unset Almost the same as actual speedometer The value displayed on the speedometer may deviate.* Engine RPM Engine speed input Min.: 0 rpm, Max.: 12701 rpm or Unset Almost the same as actual tachometer The value displayed on the tachometer may deviate.* Washer Level Warning Switch Washer fluid level warning switch input OFF or ON OFF: Washer fluid level not low
ON: Washer fluid level low- Driver Buckle Switch Seat belt buckle switch input
(for Driver seat)Fastened or Not Fastened Fastened: Driver seat belt buckle switch fastened
Not Fastened: Driver seat belt buckle switch unfastened- 3rd Right Seat Buckle / Occupant Detection Warning Switch Seat belt buckle switch and occupant detection sensor input
(for Rear No. 2 right seat)OFF or ON OFF: Rear No. 2 seat belt RH fastened
ON: Rear No. 2 seat belt RH unfastened- 3rd Left Seat Buckle / Occupant Detection Warning Switch Seat belt buckle switch and occupant detection sensor input
(for Rear No. 2 left seat)OFF or ON OFF: Rear No. 2 seat belt LH fastened
ON: Rear No. 2 seat belt LH unfastened- 3rd Center Seat Buckle / Occupant Detection Warning Switch Seat belt buckle switch and occupant detection sensor input
(for Rear No. 2 center seat)OFF or ON OFF: Rear No. 2 seat belt center fastened
ON: Rear No. 2 seat belt center unfastened- Hazard Flasher Switch Hazard warning signal switch input OFF or ON OFF: Hazard warning signal switch off
ON: Hazard warning signal switch on- Ambient Temperature (Celsius) Outside temperature input
(Celsius)Min.: -40.0°C, Max.: 87.1°C or Unset Almost the same as actual outside temperature - Ambient Temperature (Fahrenheit) Outside temperature input
(Fahrenheit)Min.: -40°F, Max.: 215°F or Unset Almost the same as actual outside temperature - Lighting System Existence of headlight ECU Without or With Without: w/o Headlight ECU
With: w/ Headlight ECU- Back Door System Existence of power back door system Without or With Without: w/o Power Back Door System
With: w/ Power Back Door System- Oil Pressure Switch Engine oil pressure switch input OFF or ON OFF: Engine started
ON: Engine not started- Oil Level Switch Engine oil level sensor input OFF or ON OFF: Engine oil level not low
ON: Engine oil level low- Coolant Temperature Engine coolant temperature input Min.: 0.0°C, Max.: 127.1°C or Unset 75 to 100°C: After warming up engine - Integrated value for Maintenance Maintenance required reminder value Min.: 0 miles, Max.: 25401 miles or Unset Driving distance after performing maintenance required reminder reset procedure displayed - Brake Fluid Amount Brake fluid level warning switch input OK or Low OK: Brake fluid level normal
Low: Brake fluid level abnormal- Brake Negative Pressure Vacuum warning switch input OK or NG OK: Brake vacuum pressure normal
NG: Brake vacuum pressure abnormal- TPMS System Existence of tire pressure warning system Without or With Without: w/o Tire Pressure Warning System
With: w/ Tire Pressure Warning System- VSC System Existence of electronically controlled brake system Without or With Without: w/o Electronically Controlled Brake System
With: w/ Electronically Controlled Brake System- DRS System Existence of dynamic rear steering system Without or With Without: w/o Dynamic Rear Steering System
With: w/ Dynamic Rear Steering System- AVS System Existence of adaptive variable suspension system Without or With Without: w/o Adaptive Variable Suspension System
With: w/ Adaptive Variable Suspension System- LDA System Existence of lane tracing assist system Without or With Without: w/o Lane Tracing Assist System
With: w/ Lane Tracing Assist System- PCS System Existence of pre-collision system Without or With Without: w/o Pre-collision System
With: w/ Pre-collision System- ICS System Existence of parking support brake system Without or With Without: w/o Parking Support Brake System
With: w/ Parking Support Brake System- Radar Cruise System Existence of dynamic radar cruise control system Without or With Without: w/o Dynamic Radar Cruise Control System
With: w/ Dynamic Radar Cruise Control System- Intuitive P/A System Existence of intuitive parking assist system Without or With Without: w/o Intuitive Parking Assist System
With: w/ Intuitive Parking Assist System- Road Sign Assist System Existence of road sign assist system Without or With Without: w/o Road Sign Assist System
With: w/ Road Sign Assist System- HV/EV System Indicator Hybrid system indicator value Min.: -101%, Max.: 511% or Unset See [Normal Condition 1] "Unset" is displayed when the vehicle is stopped and the ignition switch is ON (READY). ODO Display Time After IG OFF Adjust Setting of trip result display time after the ignition switch is turned off 30s, 60s, 600s or OFF - If it is possible to customize the setting, the current setting is displayed. Tail Remind Buzzer Function Condition of the tail remind buzzer OFF or ON Customized setting displayed - Driver Seatbelt Warning Buzzer Function Condition of the driver seat belt warning buzzer OFF or ON Customized setting displayed - Passenger Seatbelt Warning Buzzer Function Condition of the front passenger seat belt warning buzzer OFF or ON Customized setting displayed - Rear Right Seatbelt Warning Buzzer Function Condition of the rear right seat belt warning buzzer
(for Rear No. 1 right seat)OFF or ON Customized setting displayed - Rear Left Seatbelt Warning Buzzer Function Condition of the rear left seat belt warning buzzer
(for Rear No. 1 left seat)OFF or ON Customized setting displayed - Rear Center Seatbelt Warning Buzzer Function Condition of the rear center seat belt warning buzzer
(for Rear No. 1 center seat)OFF or ON Customized setting displayed - 3rd Right Seatbelt Warning Buzzer Function Condition of the rear left seat belt warning buzzer
(for Rear No. 2 right seat)OFF or ON Customized setting displayed - 3rd Left Seatbelt Warning Buzzer Function Condition of the rear left seat belt warning buzzer
(for Rear No. 2 left seat)OFF or ON Customized setting displayed - 3rd Center Seatbelt Warning Buzzer Function Condition of the rear left seat belt warning buzzer
(for Rear No. 2 center seat)OFF or ON Customized setting displayed - Lane Change Flashing Times Adjust Setting of lane change flashing time adjustment OFF, 3, 4, 5, 6 or 7 Customized setting displayed - Flasher Sound Volume Adjust Setting of flasher sound volume adjustment Large, Medium or Small - If it is possible to customize the setting, the current setting is displayed. Stop Lamp Switch Stop Lamp Switch OFF or ON - - FCTA System Existence of FCTA function Without or With Without: w/o FCTA function
With: w/ FCTA function- Navigation System Existence of navigation system Without or With Without: w/o Navigation System
With: w/ Navigation System- Audio Information Display Function Setting of headup display (audio information display) OFF or ON - If it is possible to customize the setting, the current setting is displayed. Speed Limit Display Function Setting of headup display (speed limit display for navigation system-linked) OFF or ON - If it is possible to customize the setting, the current setting is displayed. Projection Position Up Switch Display position up switch input at headup display position setting OFF or ON OFF: Switch released
ON: Switch pushed- Projection Position Down Switch Display position down switch input at headup display position setting OFF or ON OFF: Switch released
ON: Switch pushed- Display Change Switch Headup display status OFF or ON OFF: Headup display off
OFF: Headup display on- +B Voltage (HUD) Auxiliary battery voltage
(Meter mirror sub-assembly input)Min.: 0.0 V, Max.: 25.5 V or Unset 11 to 14 V - Status of the Front Camera Brightness Forward recognition camera brightness Min.: 0 cd/m2, Max.: 40000 cd/m2 or Unset - - Nonvolatile Memory Status Combination meter assembly internally stored information status Abnormal or Normal Abnormal: Combination meter assembly internally stored information reading impossible
Normal: Combination meter assembly internally stored information reading possible- HUD Display Angle Concave mirror built into meter mirror sub-assembly angle Min.: -12.7 deg, Max.: 12.8 deg or Unset Current angle of concave mirror in meter mirror sub-assembly As this value increases, the projection position of the headup display moves upward. Illumination Rate from Sensitivity Sensor Automatic light control sensor input Min.: 0 lx, Max.: 65535 lx or Unset Almost the same as actual ambient light level 0 is displayed when there is no light. Seat Switch Link Function Setting of headup display (power seat switch-linked) OFF or ON - If it is possible to customize the setting, the current setting is displayed. Reverse Buzzer Setting Setting of reverse buzzer Continual or Single - If it is possible to customize the setting, the current setting is displayed. Multi Switch Sensitivity Adjust Setting of sensitivity for touch surface of the steering pad switch (w/ Touch Tracer Operation) Normal, High or OFF - If it is possible to customize the setting, the current setting is displayed. Multi Switch Timeout Adjust Setting of popup time of the steering pad switch (w/ Touch Tracer Operation) operation guide display Normal, Short or Long - If it is possible to customize the setting, the current setting is displayed. HINT:
*: For the tolerance of each meter, refer to Operation Check.
Refer to OPERATION CHECK [09/2023 - ]
except 12.3 Inch Display
Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note Total Distance Traveled Total distance traveled Min.: 0, Max.: 16777215 - - Total Distance Traveled - Unit Total distance traveled unit km or mile - - OTA Communication Event History Wireless communication event history OFF or ON OFF: No communication event history
ON: Has communication event history- ODO/TRIP Change Switch ODO/TRIP switch operation OFF or ON OFF: Switch released
ON: Switch pushed- Light Control Switch (UP) Light control rheostat up switch operation OFF or ON OFF: Switch released
ON: Switch pushed- Light Control Switch (DOWN) Light control rheostat down switch operation OFF or ON OFF: Switch released
ON: Switch pushed- Multi Switch (Up) Up switch on steering pad switch operation OFF or ON OFF: Switch released
ON: Switch pushed- Multi Switch (Down) Down switch on steering pad switch operation OFF or ON OFF: Switch released
ON: Switch pushed- Multi Switch (Left) Left switch on steering pad switch operation OFF or ON OFF: Switch released
ON: Switch pushed- Multi Switch (Right) Right switch on steering pad switch operation OFF or ON OFF: Switch released
ON: Switch pushed- Multi Switch (Enter) OK switch on steering pad switch operation OFF or ON OFF: Switch released
ON: Switch pushed- Multi Switch (Back) Back switch on steering pad switch operation OFF or ON OFF: Switch released
ON: Switch pushed- +B Voltage Auxiliary battery voltage
(Combination meter assembly input)Min.: 0.0 V, Max.: 25.5 V or Unset 11 to 14 V - Fuel Input Fuel level input Min.: 0.00 L, Max.: 655.35 L or Unset - Fuel receiver gauge indicates F:
65.74 L
- Fuel receiver gauge indicates 3/4:
53.04 L
- Fuel receiver gauge indicates 1/2:
45.32 L
- Fuel receiver gauge indicates 1/4:
29.89 L
- Fuel receiver gauge indicates E:
6.75 L
The detected value of the fuel sender gauge assembly is displayed. Vehicle Speed Meter Vehicle speed input Min.: 0 km/h (0 mph), Max.: 255 km/h (158 mph) or Unset Almost the same as actual speedometer The value displayed on the speedometer may deviate.* Engine RPM Engine speed input Min.: 0 rpm, Max.: 12701 rpm or Unset Almost the same as actual tachometer The value displayed on the tachometer may deviate.* Washer Level Warning Switch Washer fluid level warning switch input OFF or ON OFF: Washer fluid level not low
ON: Washer fluid level low- Driver Buckle Switch Seat belt buckle switch input
(for Driver seat)Fastened or Not Fastened Fastened: Driver seat belt buckle switch fastened
Not Fastened: Driver seat belt buckle switch unfastened- 3rd Right Seat Buckle / Occupant Detection Warning Switch Seat belt buckle switch and occupant detection sensor input
(for Rear No. 2 right seat)OFF or ON OFF: Rear No. 2 seat belt RH fastened
ON: Rear No. 2 seat belt RH unfastened- 3rd Left Seat Buckle / Occupant Detection Warning Switch Seat belt buckle switch and occupant detection sensor input
(for Rear No. 2 left seat)OFF or ON OFF: Rear No. 2 seat belt LH fastened
ON: Rear No. 2 seat belt LH unfastened- 3rd Center Seat Buckle / Occupant Detection Warning Switch Seat belt buckle switch and occupant detection sensor input
(for Rear No. 2 center seat)OFF or ON OFF: Rear No. 2 seat belt center fastened
ON: Rear No. 2 seat belt center unfastened- Hazard Flasher Switch Hazard warning signal switch input OFF or ON OFF: Hazard warning signal switch off
ON: Hazard warning signal switch on- Ambient Temperature (Celsius) Outside temperature input
(Celsius)Min.: -40.0°C, Max.: 87.1°C or Unset Almost the same as actual outside temperature - Ambient Temperature (Fahrenheit) Outside temperature input
(Fahrenheit)Min.: -40°F, Max.: 215°F or Unset Almost the same as actual outside temperature - Lighting System Existence of headlight ECU Without or With Without: w/o Headlight ECU
With: w/ Headlight ECU- Back Door System Existence of power back door system Without or With Without: w/o Power Back Door System
With: w/ Power Back Door System- Oil Pressure Switch Engine oil pressure switch input OFF or ON OFF: Engine started
ON: Engine not started- Oil Level Switch Engine oil level sensor input OFF or ON OFF: Engine oil level not low
ON: Engine oil level low- Coolant Temperature Engine coolant temperature input Min.: 0.0°C, Max.: 127.1°C or Unset 75 to 100°C: After warming up engine - Integrated value for Maintenance Maintenance required reminder value Min.: 0 miles, Max.: 25401 miles or Unset Driving distance after performing maintenance required reminder reset procedure displayed - Brake Fluid Amount Brake fluid level warning switch input OK or Low OK: Brake fluid level normal
Low: Brake fluid level abnormal- Brake Negative Pressure Vacuum warning switch input OK or NG OK: Brake vacuum pressure normal
NG: Brake vacuum pressure abnormal- TPMS System Existence of tire pressure warning system Without or With Without: w/o Tire Pressure Warning System
With: w/ Tire Pressure Warning System- VSC System Existence of electronically controlled brake system Without or With Without: w/o Electronically Controlled Brake System
With: w/ Electronically Controlled Brake System- DRS System Existence of dynamic rear steering system Without or With Without: w/o Dynamic Rear Steering System
With: w/ Dynamic Rear Steering System- AVS System Existence of adaptive variable suspension system Without or With Without: w/o Adaptive Variable Suspension System
With: w/ Adaptive Variable Suspension System- LDA System Existence of lane tracing assist system Without or With Without: w/o Lane Tracing Assist System
With: w/ Lane Tracing Assist System- PCS System Existence of pre-collision system Without or With Without: w/o Pre-collision System
With: w/ Pre-collision System- ICS System Existence of parking support brake system Without or With Without: w/o Parking Support Brake System
With: w/ Parking Support Brake System- Radar Cruise System Existence of dynamic radar cruise control system Without or With Without: w/o Dynamic Radar Cruise Control System
With: w/ Dynamic Radar Cruise Control System- Intuitive P/A System Existence of intuitive parking assist system Without or With Without: w/o Intuitive Parking Assist System
With: w/ Intuitive Parking Assist System- Road Sign Assist System Existence of road sign assist system Without or With Without: w/o Road Sign Assist System
With: w/ Road Sign Assist System- HV/EV System Indicator Hybrid system indicator value Min.: -101%, Max.: 511% or Unset See [Normal Condition 1] "Unset" is displayed when the vehicle is stopped and the ignition switch is ON (READY). ODO Display Time After IG OFF Adjust Setting of trip result display time after the ignition switch is turned off 30s, 60s, 600s or OFF - If it is possible to customize the setting, the current setting is displayed. Tail Remind Buzzer Function Condition of the tail remind buzzer OFF or ON Customized setting displayed - Driver Seatbelt Warning Buzzer Function Condition of the driver seat belt warning buzzer OFF or ON Customized setting displayed - Passenger Seatbelt Warning Buzzer Function Condition of the front passenger seat belt warning buzzer OFF or ON Customized setting displayed - Rear Right Seatbelt Warning Buzzer Function Condition of the rear right seat belt warning buzzer
(for Rear No. 1 right seat)OFF or ON Customized setting displayed - Rear Left Seatbelt Warning Buzzer Function Condition of the rear left seat belt warning buzzer
(for Rear No. 1 left seat)OFF or ON Customized setting displayed - Rear Center Seatbelt Warning Buzzer Function Condition of the rear center seat belt warning buzzer
(for Rear No. 1 center seat)OFF or ON Customized setting displayed - 3rd Right Seatbelt Warning Buzzer Function Condition of the rear left seat belt warning buzzer
(for Rear No. 2 right seat)OFF or ON Customized setting displayed - 3rd Left Seatbelt Warning Buzzer Function Condition of the rear left seat belt warning buzzer
(for Rear No. 2 left seat)OFF or ON Customized setting displayed - 3rd Center Seatbelt Warning Buzzer Function Condition of the rear left seat belt warning buzzer
(for Rear No. 2 center seat)OFF or ON Customized setting displayed - Lane Change Flashing Times Adjust Setting of lane change flashing time adjustment OFF, 3, 4, 5, 6 or 7 Customized setting displayed - Flasher Sound Volume Adjust Setting of flasher sound volume adjustment Large, Medium or Small - If it is possible to customize the setting, the current setting is displayed. Stop Lamp Switch Stop Lamp Switch OFF or ON - - Illumination Rate from Sensitivity Sensor Automatic light control sensor input Min.: 0 lx, Max.: 65535 lx or Unset Almost the same as actual ambient light level 0 is displayed when there is no light. Reverse Buzzer Setting Setting of reverse buzzer Continual or Single - If it is possible to customize the setting, the current setting is displayed. HINT:
*: For the tolerance of each meter, refer to Operation Check.
Refer to OPERATION CHECK [09/2023 - ]
HINT:

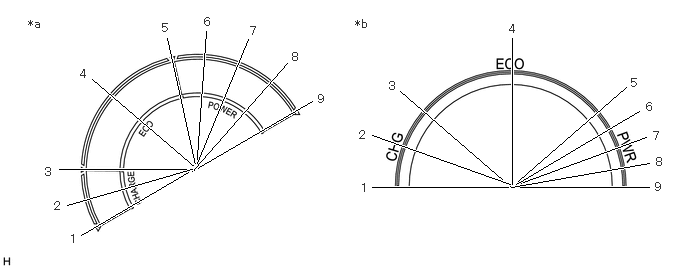

[Normal Condition 1]: HV/EV System Indicator
*a Hybrid System Indicator
(Display Type A)*b Hybrid System Indicator
(Display Type B)Refer to the following table to find the approximate indicated value of the hybrid system indicator based on the value of the Data List item:
Data List: HV/EV System Indicator (%) Hybrid System Indicator Indication Unset Not indicated -100 Approximately 1 is indicated -50 Approximately 2 is indicated 0 Approximately 3 is indicated 50 Approximately 4 is indicated 100 Approximately 5 is indicated 200 Approximately 6 is indicated 300 Approximately 7 is indicated 400 Approximately 8 is indicated 500 Approximately 9 is indicated
- Fuel receiver gauge indicates F:
- Main Body
Body Electrical > Main Body > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note Support Service Function Setting of Suggestion Service OFF, Parked or ON - If it is possible to customize the setting, the current setting is displayed.
- Combination Meter
- Read the Data List according to the display on the GTS.
- ACTIVE TEST
HINT:
Using the GTS to perform Active Tests allows relays, VSVs, actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Tests early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Tests.
- Perform the Active Test in accordance with the display on the GTS.
HINT:
Depending on the specifications of the vehicle, some items may not be displayed.
for 12.3 Inch Display
Body Electrical > Combination Meter > Active Test
Tester Display Measurement Item Control Range Diagnostic Note Speedometer Operation (0km/h, 0MPH) Speedometer 0 km/h (0 mph)*1 ON - Speedometer Operation (40km/h, 40MPH) Speedometer 40 km/h (40 mph)*1 ON - Speedometer Operation (80km/h, 80MPH) Speedometer 80 km/h (80 mph)*1 ON - Speedometer Operation (120km/h, 120MPH) Speedometer 120 km/h (120 mph)*1 ON - Speedometer Operation (160km/h, 160MPH) Speedometer 160 km/h (160 mph)*1 ON - Speedometer Operation (200km/h, 200MPH) Speedometer 200 km/h (200 mph)*1 ON - Speedometer Operation (240km/h, 240MPH) Speedometer 240 km/h (240 mph)*1 ON - Speedometer Operation (280km/h, 280MPH) Speedometer 280 km/h (280 mph)*1 ON - Speedometer Operation (320km/h, 320MPH) Speedometer 320 km/h (320 mph)*1 ON - Speedometer Operation (360km/h, 360MPH) Speedometer 360 km/h (360 mph)*1 ON - Speedometer Operation (400km/h, 400MPH) Speedometer 400 km/h (400 mph)*1 ON - Buzzer Operation (800Hz, Vol L, W/ Damping) Combination meter buzzer - Frequency: 800Hz
- Volume: Large
- Fading tone
ON - Buzzer Operation (800Hz, Vol L, W/O Damping) Combination meter buzzer - Frequency: 800Hz
- Volume: Large
- Continuous tone
ON - Buzzer Operation (800Hz, Vol S, W/ Damping) Combination meter buzzer - Frequency: 800Hz
- Volume: Small
- Fading tone
ON - Buzzer Operation (800Hz, Vol S, W/O Damping) Combination meter buzzer - Frequency: 800Hz
- Volume: Small
- Continuous tone
ON - Buzzer Operation (1.6kHz, Vol S, W/O Damping) Combination meter buzzer - Frequency: 1.6kHz
- Volume: Small
- Continuous tone
ON - Buzzer Operation (2.4kHz, Vol L, W/O Damping) Combination meter buzzer - Frequency: 2.4kHz
- Volume: Large
- Continuous tone
ON - Multi Display All (White) Multi-information display
(White color display)ON - Multi Display Default Screen Multi-information display
(Default screen)ON - Speed Signal Input (0) Vehicle speed test signal input*2 ON When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test. Speed Signal Input (40) Vehicle speed test signal input*2 ON - When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
- The value displayed on the speedometer may deviate.*3
Speed Signal Input (80) Vehicle speed test signal input*2 ON - When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
- The value displayed on the speedometer may deviate.*3
Speed Signal Input (120) Vehicle speed test signal input*2 ON - When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
- The value displayed on the speedometer may deviate.*3
Speed Signal Input (160) Vehicle speed test signal input*2 ON - When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
- for Speedometer Unit km/h Type:
The value displayed on the speedometer may deviate.*3
- for Speedometer Unit MPH Type:
The value displayed on the speedometer may deviate.*3
Speed Signal Input (200) Vehicle speed test signal input*2 ON - When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
- for Speedometer Unit km/h Type:
The value displayed on the speedometer may deviate.*3
- for Speedometer Unit MPH Type:
When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.
Speed Signal Input (240) Vehicle speed test signal input*2 ON - When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
- for Speedometer Unit km/h Type:
The value displayed on the speedometer may deviate.*3
- for Speedometer Unit MPH Type:
When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.
Speed Signal Input (280) Vehicle speed test signal input*2 ON - When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
- When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.
Speed Signal Input (320) Vehicle speed test signal input*2 ON - When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
- When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.
Speed Signal Input (360) Vehicle speed test signal input*2 ON - When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
- When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.
Speed Signal Input (400) Vehicle speed test signal input*2 ON - When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
- When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.
ODO/TRIP Change Switch Performs the same operation as pressing the ODO/TRIP switch OFF or ON - Light Control Switch (UP) Performs the same operation as pressing the light control rheostat up switch OFF or ON - Light Control Switch (DOWN) Performs the same operation as pressing the light control rheostat down switch OFF or ON - Multi Switch (Up) Performs the same operation as pressing the up switch on steering pad switch (w/o Touch Tracer Operation) OFF or ON - Multi Switch (Down) Performs the same operation as pressing the down switch on steering pad switch (w/o Touch Tracer Operation) OFF or ON - Multi Switch (Left) Performs the same operation as pressing the left switch on steering pad switch (w/o Touch Tracer Operation) OFF or ON - Multi Switch (Right) Performs the same operation as pressing the right switch on steering pad switch (w/o Touch Tracer Operation) OFF or ON - Multi Switch (Enter) Performs the same operation as pressing the OK switch on steering pad switch (w/o Touch Tracer Operation) OFF or ON - Multi Switch (Back) Performs the same operation as pressing the back switch on steering pad switch (w/o Touch Tracer Operation) OFF or ON - Color Test Screen (Black) Headup display
(Black color display)ON - Color Test Screen (White) Headup display
(White color display)ON - Color Test Screen (Red) Headup display
(Red color display)ON - Color Test Screen (Green) Headup display
(Green color display)ON - Color Test Screen (Blue) Headup display
(Blue color display)ON - Color Test Screen (Color Bars) Headup display
(Color bars)ON - Color Test Screen (Adjustment) Headup display
(Adjustment screen)ON - Intuitive P/A Front Buzzer (Short) Clearance warning buzzer - Detection direction: Front
- Detection range: Near
ON - Intuitive P/A Front Buzzer (Middle) Clearance warning buzzer - Detection direction: Front
- Detection range: Middle
ON - Intuitive P/A Front Buzzer (Far) Clearance warning buzzer - Detection direction: Front
- Detection range: Far
ON - Intuitive P/A Front Buzzer (Farthest) Clearance warning buzzer - Detection direction: Front
- Detection range: Farthest
ON - Intuitive P/A Rear Buzzer (Short) Clearance warning buzzer - Detection direction: Rear
- Detection range: Near
ON - Intuitive P/A Rear Buzzer (Middle) Clearance warning buzzer - Detection direction: Rear
- Detection range: Middle
ON - Intuitive P/A Rear Buzzer (Far) Clearance warning buzzer - Detection direction: Rear
- Detection range: Far
ON - Intuitive P/A Rear Buzzer (Farthest) Clearance warning buzzer - Detection direction: Rear
- Detection range: Farthest
ON - Intuitive P/A Front/Rear Buzzer (Short) Clearance warning buzzer - Detection direction: Front/Rear
- Detection range: Near
ON - Intuitive P/A Front/Rear Buzzer (Middle) Clearance warning buzzer - Detection direction: Front/Rear
- Detection range: Middle
ON - Intuitive P/A Front/Rear Buzzer (Far) Clearance warning buzzer - Detection direction: Front/Rear
- Detection range: Far
ON - Intuitive P/A Front/Rear Buzzer (Farthest) Clearance warning buzzer - Detection direction: Front/Rear
- Detection range: Farthest
ON - R position Buzzer A/T reverse buzzer ON - Shift By Wire Buzzer Shift by wire reverse buzzer ON - Regulation Buzzer Seat belt warning buzzer - Regulation sound
ON - Level2 Buzzer Seat belt warning buzzer - Sounds intermittently
- 1.4 second cycle
ON - Level1 Buzzer Seat belt warning buzzer - Sounds intermittently
- 2 second cycle
ON - Buckle Buzzer Seat belt warning buzzer - Regulation once
ON - Flasher Buzzer (Startup Sound) Turn signal flasher buzzer ON - Flasher Buzzer (Finish Sound) Turn signal flasher buzzer ON - Liquid Crystal Display Backlight Brightness Headup display
(display brightness)0 to 100% - HUD Display Position Headup display
(Display position)Up (+3), Up (+2), Up (+1), Center, Down (-1), Down (-2) or Down (-3) - HINT:
- *1: When this Active Test is performed, an operation signal is sent directly to the combination meter assembly to operate the speedometer.
- *2: When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
- *3: For the tolerance of each meter, refer to Operation Check.
Refer to OPERATION CHECK [09/2023 - ]
except 12.3 Inch Display
Body Electrical > Combination Meter > Active Test
Tester Display Measurement Item Control Range Diagnostic Note Speedometer Operation (0km/h, 0MPH) Speedometer 0 km/h (0 mph)*1 ON - Speedometer Operation (40km/h, 40MPH) Speedometer 40 km/h (40 mph)*1 ON - Speedometer Operation (80km/h, 80MPH) Speedometer 80 km/h (80 mph)*1 ON - Speedometer Operation (120km/h, 120MPH) Speedometer 120 km/h (120 mph)*1 ON - Speedometer Operation (160km/h, 160MPH) Speedometer 160 km/h (160 mph)*1 ON - Speedometer Operation (200km/h, 200MPH) Speedometer 200 km/h (200 mph)*1 ON - Speedometer Operation (240km/h, 240MPH) Speedometer 240 km/h (240 mph)*1 ON - Speedometer Operation (280km/h, 280MPH) Speedometer 280 km/h (280 mph)*1 ON - Speedometer Operation (320km/h, 320MPH) Speedometer 320 km/h (320 mph)*1 ON - Speedometer Operation (360km/h, 360MPH) Speedometer 360 km/h (360 mph)*1 ON - Speedometer Operation (400km/h, 400MPH) Speedometer 400 km/h (400 mph)*1 ON - TachoMeter Operation (0rpm) Tachometer
(0 rpm)ON - TachoMeter Operation (1000rpm) Tachometer
(1000 rpm)ON - TachoMeter Operation (2000rpm) Tachometer
(2000 rpm)ON - TachoMeter Operation (3000rpm) Tachometer
(3000 rpm)ON - TachoMeter Operation (4000rpm) Tachometer
(4000 rpm)ON - TachoMeter Operation (5000rpm) Tachometer
(5000 rpm)ON - TachoMeter Operation (6000rpm) Tachometer
(6000 rpm)ON - TachoMeter Operation (7000rpm) Tachometer
(7000 rpm)ON - TachoMeter Operation (8000rpm) Tachometer
(8000 rpm)ON - TachoMeter Operation (9000rpm) Tachometer
(9000 rpm)ON - TachoMeter Operation (10000rpm) Tachometer
(10000 rpm)ON - Fuel Gauge Operation (Sender E) Fuel receiver gauge
(Fuel sender gauge lower limit)ON See [Display 1] Fuel Gauge Operation (Empty) Fuel receiver gauge
(Fuel receiver gauge indicates E)ON See [Display 1] Fuel Gauge Operation (Warning) Fuel receiver gauge
(Position at which fuel level warning light turns on/off)ON See [Display 1] Fuel Gauge Operation (1/4) Fuel receiver gauge
(Fuel receiver gauge indicates 1/4)ON See [Display 1] Fuel Gauge Operation (1/2) Fuel receiver gauge
(Fuel receiver gauge indicates 1/2)ON See [Display 1] Fuel Gauge Operation (3/4) Fuel receiver gauge
(Fuel receiver gauge indicates 3/4)ON See [Display 1] Fuel Gauge Operation (Full) Fuel receiver gauge
(Fuel receiver gauge indicates F)ON See [Display 1] Fuel Gauge Operation (Sender F) Fuel receiver gauge
(Fuel sender gauge upper limit)ON See [Display 1] Water Temperature Meter Operation (50C, 122F) Engine coolant temperature receiver gauge
(50°C, 122°F)ON See [Display 2] Water Temperature Meter Operation (60C, 140F) Engine coolant temperature receiver gauge
(60°C, 140°F)ON See [Display 2] Water Temperature Meter Operation (70C, 158F) Engine coolant temperature receiver gauge
(70°C, 158°F)ON See [Display 2] Water Temperature Meter Operation (80C, 176F) Engine coolant temperature receiver gauge
(80°C, 176°F)ON See [Display 2] Water Temperature Meter Operation (Middle) Engine coolant temperature receiver gauge
(Middle)ON See [Display 2] Water Temperature Meter Operation (110C, 230F) Engine coolant temperature receiver gauge
(110°C, 230°F)ON See [Display 2] Water Temperature Meter Operation (120C, 248F) Engine coolant temperature receiver gauge
(120°C, 248°F)ON See [Display 2] Water Temperature Meter Operation (127C, 260F) Engine coolant temperature receiver gauge
(127°C, 260°F)ON See [Display 2] Buzzer Operation (800Hz, Vol L, W/ Damping) Combination meter buzzer - Frequency: 800Hz
- Volume: Large
- Fading tone
ON - Buzzer Operation (800Hz, Vol L, W/O Damping) Combination meter buzzer - Frequency: 800Hz
- Volume: Large
- Continuous tone
ON - Buzzer Operation (800Hz, Vol S, W/ Damping) Combination meter buzzer - Frequency: 800Hz
- Volume: Small
- Fading tone
ON - Buzzer Operation (800Hz, Vol S, W/O Damping) Combination meter buzzer - Frequency: 800Hz
- Volume: Small
- Continuous tone
ON - Buzzer Operation (1.6kHz, Vol S, W/O Damping) Combination meter buzzer - Frequency: 1.6kHz
- Volume: Small
- Continuous tone
ON - Buzzer Operation (2.4kHz, Vol L, W/O Damping) Combination meter buzzer - Frequency: 2.4kHz
- Volume: Large
- Continuous tone
ON - Multi Display All (White) Multi-information display
(White color display)ON - Multi Display Default Screen Multi-information display
(Default screen)ON - Fuel Gauge Indicator Fuel level warning light OFF or ON - High Beam Indicator High beam indicator light OFF or ON - Headlamp Indicator Head indicator light OFF or ON - Taillamp Indicator Tail indicator light OFF or ON - Front Fog Lamp Indicator Front fog indicator light OFF or ON - Automatic High Beam Indicator (Green) Automatic high beam/adaptive high beam indicator light OFF or ON - Left Turn Signal Indicator Turn indicator light
(LH side)OFF or ON - Right Turn Signal Indicator Turn indicator light
(RH side)OFF or ON - Driver Side Seat Belt Warning Driver or front passenger seat belt warning light OFF or ON - Airbag Warning SRS warning light OFF or ON - Check Engine Warning MIL (Check engine warning light) OFF or ON - Brake Warning Brake warning light / red (malfunction) OFF or ON - Park Warning Parking brake indicator light OFF or ON - ABS Warning ABS warning light OFF or ON - ECB Warning Brake warning light / yellow (minor malfunction) OFF or ON - Slip Warning Slip indicator light OFF or ON - VSC OFF Indicator VSC OFF indicator light OFF or ON - Brake Hold Indicator Brake hold standby indicator light OFF or ON - Hold Indicator Brake hold operated indicator light OFF or ON - Downhill Assist Control Indicator Downhill assist control indicator light OFF or ON - Tire Pressure Warning System Indicator Tire pressure warning light OFF or ON - EPS Warning EPS warning light
(Red)OFF or ON - PPS Warning EPS warning light
(Amber)OFF or ON - PCS OFF Warning PCS warning light OFF or ON - Stop and Start ON Indicator Stop and start indicator light OFF or ON - Stop and Start OFF Indicator Stop and start off indicator light OFF or ON - ADAS Integrated Warning Driving assist information indicator light OFF or ON - Speed Signal Input (0) Vehicle speed test signal input*2 ON When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test. Speed Signal Input (40) Vehicle speed test signal input*2 ON - When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
- The value displayed on the speedometer may deviate.*3
Speed Signal Input (80) Vehicle speed test signal input*2 ON - When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
- The value displayed on the speedometer may deviate.*3
Speed Signal Input (120) Vehicle speed test signal input*2 ON - When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
- The value displayed on the speedometer may deviate.*3
Speed Signal Input (160) Vehicle speed test signal input*2 ON - When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
- for Speedometer Unit km/h Type:
The value displayed on the speedometer may deviate.*3
- for Speedometer Unit MPH Type:
The value displayed on the speedometer may deviate.*3
Speed Signal Input (200) Vehicle speed test signal input*2 ON - When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
- for Speedometer Unit km/h Type:
The value displayed on the speedometer may deviate.*3
- for Speedometer Unit MPH Type:
When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.
Speed Signal Input (240) Vehicle speed test signal input*2 ON - When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
- for Speedometer Unit km/h Type:
The value displayed on the speedometer may deviate.*3
- for Speedometer Unit MPH Type:
When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.
Speed Signal Input (280) Vehicle speed test signal input*2 ON - When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
- When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.
Speed Signal Input (320) Vehicle speed test signal input*2 ON - When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
- When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.
Speed Signal Input (360) Vehicle speed test signal input*2 ON - When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
- When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.
Speed Signal Input (400) Vehicle speed test signal input*2 ON - When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
- When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.
ODO/TRIP Change Switch Performs the same operation as pressing the ODO/TRIP switch OFF or ON - Light Control Switch (UP) Performs the same operation as pressing the light control rheostat up switch OFF or ON - Light Control Switch (DOWN) Performs the same operation as pressing the light control rheostat down switch OFF or ON - Multi Switch (Up) Performs the same operation as pressing the up switch on steering pad switch OFF or ON - Multi Switch (Down) Performs the same operation as pressing the down switch on steering pad switch OFF or ON - Multi Switch (Left) Performs the same operation as pressing the left switch on steering pad switch OFF or ON - Multi Switch (Right) Performs the same operation as pressing the right switch on steering pad switch OFF or ON - Multi Switch (Enter) Performs the same operation as pressing the OK switch on steering pad switch OFF or ON - Multi Switch (Back) Performs the same operation as pressing the back switch on steering pad switch OFF or ON - Intuitive P/A Front Buzzer (Short) Clearance warning buzzer - Detection direction: Front
- Detection range: Near
ON - Intuitive P/A Front Buzzer (Middle) Clearance warning buzzer - Detection direction: Front
- Detection range: Middle
ON - Intuitive P/A Front Buzzer (Far) Clearance warning buzzer - Detection direction: Front
- Detection range: Far
ON - Intuitive P/A Front Buzzer (Farthest) Clearance warning buzzer - Detection direction: Front
- Detection range: Farthest
ON - Intuitive P/A Rear Buzzer (Short) Clearance warning buzzer - Detection direction: Rear
- Detection range: Near
ON - Intuitive P/A Rear Buzzer (Middle) Clearance warning buzzer - Detection direction: Rear
- Detection range: Middle
ON - Intuitive P/A Rear Buzzer (Far) Clearance warning buzzer - Detection direction: Rear
- Detection range: Far
ON - Intuitive P/A Rear Buzzer (Farthest) Clearance warning buzzer - Detection direction: Rear
- Detection range: Farthest
ON - R position Buzzer A/T reverse buzzer ON - Shift By Wire Buzzer Shift by wire reverse buzzer ON - Regulation Buzzer Seat belt warning buzzer - Regulation sound
ON - Level2 Buzzer Seat belt warning buzzer - Sounds intermittently
- 1.4 second cycle
ON - Level1 Buzzer Seat belt warning buzzer - Sounds intermittently
- 2 second cycle
ON - Buckle Buzzer Seat belt warning buzzer - Regulation once
ON - Flasher Buzzer (Startup Sound) Turn signal flasher buzzer ON - Flasher Buzzer (Finish Sound) Turn signal flasher buzzer ON - HINT:
- *1: When this Active Test is performed, an operation signal is sent directly to the combination meter assembly to operate the speedometer.
- *2: When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
- *3: For the tolerance of each meter, refer to Operation Check.
Refer to OPERATION CHECK [09/2023 - ]
HINT:
[Display 1]: Fuel Gauge Operation
*a Fuel Receiver Gauge *b Segments Refer to the following table for the specified fuel receiver gauge position for each selected value:
Tester Display Fuel Receiver Gauge Indication Fuel Gauge Operation
(Sender E)Segments illuminate 0/8 Fuel Gauge Operation
(Empty)Segments illuminate 1/8 Fuel Gauge Operation
(Warning)Segments illuminate 1/8 Fuel Gauge Operation
(1/4)Segments illuminate 2/8 Fuel Gauge Operation
(1/2)Segments illuminate 4/8 Fuel Gauge Operation
(3/4)Segments illuminate 6/8 Fuel Gauge Operation
(Full)Segments illuminate 8/8 Fuel Gauge Operation
(Sender F)Segments illuminate 8/8
[Display 2]: Water Temperature Meter Operation
- Refer to the following table for the specified engine coolant temperature receiver gauge position for each selected value:
Tester Display Engine Coolant Temperature Receiver Gauge Indication Water Temperature Meter Operation
(50C, 122F)Segments illuminate 2/8 Water Temperature Meter Operation
(60C, 140F)Segments illuminate 2/8 Water Temperature Meter Operation
(70C, 158F)Segments illuminate 3/8 Water Temperature Meter Operation
(80C, 176F)Segments illuminate 4/8 Water Temperature Meter Operation
(Middle)Segments illuminate 4/8 Water Temperature Meter Operation
(110C, 230F)Segments illuminate 5/8 Water Temperature Meter Operation
(120C, 248F)Segments illuminate 8/8 Water Temperature Meter Operation
(127C, 260F)Segments illuminate 8/8 *a Engine Coolant Temperature Receiver Gauge *b Segments
- Perform the Active Test in accordance with the display on the GTS.
