Removal [09/2023 - 12/2023]: Procedure

  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to PRECAUTION [09/2023 - ]
  2. REMOVE DECK BOARD ASSEMBLY (except Gasoline Model)

    Refer to PROCEDURE - Step 2

  3. REMOVE BATTERY SERVICE HOLE COVER (except Gasoline Model)

    Refer to PROCEDURE - Step 3

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    1. for Gasoline Model:

      Refer to PROCEDURE - Step 2

    2. except Gasoline Model:

      Refer to PROCEDURE - Step 4

  5. REMOVE REAR NO. 2 SEAT ASSEMBLY

    Refer to REMOVAL [09/2023 - 12/2023]

  6. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 33

  7. REMOVE REAR OUTER SEAT TRACK BRACKET COVER

    Refer to PROCEDURE - Step 11

  8. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 12

  9. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

    See step  9

  10. REMOVE CENTER PILLAR LOWER GARNISH BELT HOLE COVER

    See step  10

  11. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY

    See step  11

  12. REMOVE DECK SIDE TRIM COVER

    Refer to PROCEDURE - Step 36

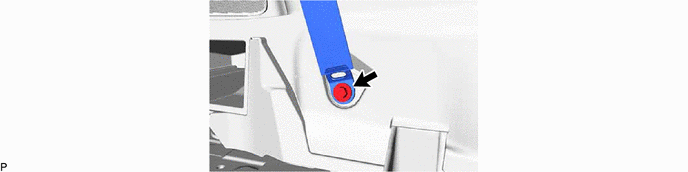

  13. DISCONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY
    1. GTY1237119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE DECK TRIM POCKET COVER
    Refer to PROCEDURE - Step 38
  15. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 39

  16. REMOVE ROPE HOOK
    Refer to PROCEDURE - Step 40
  17. REMOVE ROPE HOOK ASSEMBLY
    Refer to PROCEDURE - Step 41
  18. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)

    Refer to PROCEDURE - Step 42

  19. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 54

  20. REMOVE REAR WINDOW SIDE GARNISH

    Refer to PROCEDURE - Step 44

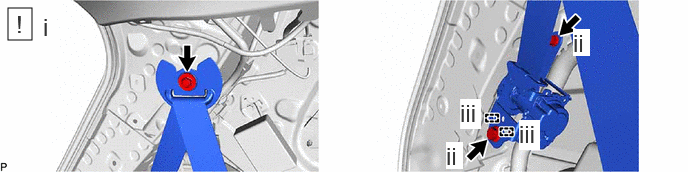

  21. REMOVE REAR NO. 2 SEAT OUTER BELT ASSEMBLY
    1. GTY1231419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Loosen the bolt and disconnect the shoulder anchor of the rear No. 2 seat outer belt assembly.

        HINT:

        The bolt cannot be removed from the shoulder anchor of the rear No. 2 seat outer belt assembly.

      2. Remove the 2 bolts.
      3. Disengage the 2 guides to remove the rear No. 2 seat outer belt assembly.
