Removal [09/2023 - 12/2023]: Procedure

  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [09/2023 - ]
  2. REMOVE DECK BOARD ASSEMBLY (except Gasoline Model)

    Refer to PROCEDURE - Step 2

  3. REMOVE BATTERY SERVICE HOLE COVER (except Gasoline Model)

    Refer to PROCEDURE - Step 3

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    1. for Gasoline Model:

      Refer to PROCEDURE - Step 2

    2. except Gasoline Model:

      Refer to PROCEDURE - Step 4

  5. REMOVE REAR NO. 2 SEAT ASSEMBLY

    Refer to REMOVAL [09/2023 - 12/2023]

  6. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 33

  7. REMOVE REAR OUTER SEAT TRACK BRACKET COVER

    Refer to PROCEDURE - Step 11

  8. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 12

  9. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

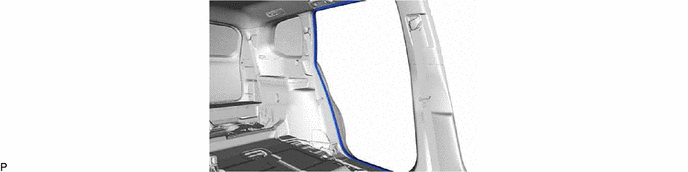

    1. GTY1237139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE CENTER PILLAR LOWER GARNISH BELT HOLE COVER

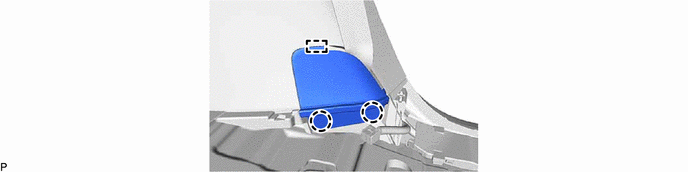

    1. GTY1237138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY

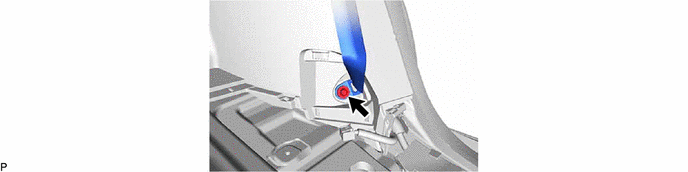

    1. GTY1241029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE DECK SIDE TRIM COVER

    Refer to PROCEDURE - Step 36

  13. DISCONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY

    See step  13

  14. REMOVE DECK TRIM POCKET COVER
    Refer to PROCEDURE - Step 38
  15. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 39

  16. REMOVE ROPE HOOK
    Refer to PROCEDURE - Step 40
  17. REMOVE ROPE HOOK ASSEMBLY
    Refer to PROCEDURE - Step 41
  18. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)

    Refer to PROCEDURE - Step 42

  19. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 54

  20. REMOVE ROOF SIDE INNER GARNISH

    Refer to PROCEDURE - Step 43

  21. REMOVE REAR SEAT OUTER BELT ASSEMBLY

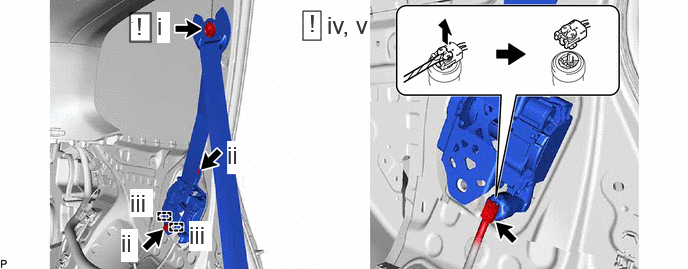

    1. GTY1236072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Loosen the bolt and disconnect the shoulder anchor of the rear seat outer belt assembly.

        HINT:

        The bolt cannot be removed from the shoulder anchor of the rear seat outer belt assembly.

      2. Remove the 2 bolts.
      3. Disengage the 2 guides.
      4. Using a screwdriver with its tip wrapped with protective tape, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.
      5. Remove the rear seat outer belt assembly.
