Removal [09/2023 - 12/2023]: Procedure
- PRECAUTION WARNING:
Be sure to read Precaution thoroughly before servicing.
Refer to PRECAUTION [09/2023 - ]
NOTE:After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
- for T24A-FTS (for Gasoline Model):
Refer to REMOVAL [09/2023 - ]
- for T24A-FTS (for 1Motor-HEV Model):
Refer to REMOVAL [09/2023 - ]
- for T24A-FTS (for Gasoline Model):
- REMOVE FRONT DOOR ARMREST COVER
Refer to PROCEDURE - Step 5
- REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
Refer to PROCEDURE - Step 6 - REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
Refer to PROCEDURE - Step 7 - REMOVE COURTESY LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1 - REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 9 - REMOVE SIDE AIRBAG PRESSURE SENSOR
*a Illumination off - - - Check that the ignition switch is off.
- Check that the cable is disconnected from the negative (-) auxiliary battery terminal.WARNING:
Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
Remove in this Direction - - - Disconnect the connector from the side airbag pressure sensor.NOTE:
When disconnecting any airbag connector, take care not to damage the airbag wire harness.
HINT:
Refer to How to Connect or Disconnect Airbag Connector.
Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [09/2023 - ]

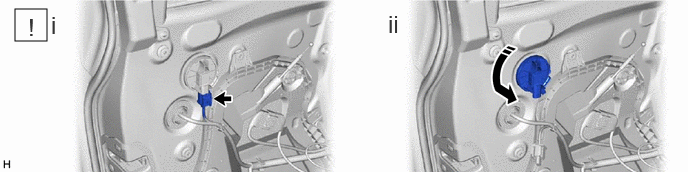

- Remove the side airbag pressure sensor from the front door panel as shown in the illustration.
- Disconnect the connector from the side airbag pressure sensor.
