Installation [09/2023 - ]: Procedure

NOTE: When replacing worn front disc brake pads, the front disc brake anti-squeal shims and front disc brake pad wear indicator plates must be replaced together with the front disc brake pads. Do not apply lubricants to the lining surface of the brake pad. Install the front disc brake pad wear indicator plates in the correct position and direction. Install the front disc brake anti-squeal shims in the correct position and direction.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Front No. 1 Disc Brake Anti-squeal Shim	*2	Front Disc Brake Pad
   *3	Front Disc Brake Pad Wear Indicator Plate	-	-
   	Brake Caliper Grease (Part No. 08887-80609)	-	-

   1. 1. Apply brake caliper grease (Part No. 08887-80609) to the location on the inside of front No. 1 disc brake anti-squeal shim outer side as shown in the illustration.

      2. Install the front No. 1 disc brake anti-squeal shim to each front disc brake pad.

      3. Install a new front disc brake pad wear indicator plate to each front disc brake pad.

WARNING: Be careful not to get pinched by the front disc brake cylinder assembly or other parts when installing the front disc brake pads. After lifting up the front disc brake cylinder assembly, secure it in place before performing any work on it. The front disc brake cylinder assembly could fall, pinching hands or fingers and causing injury. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

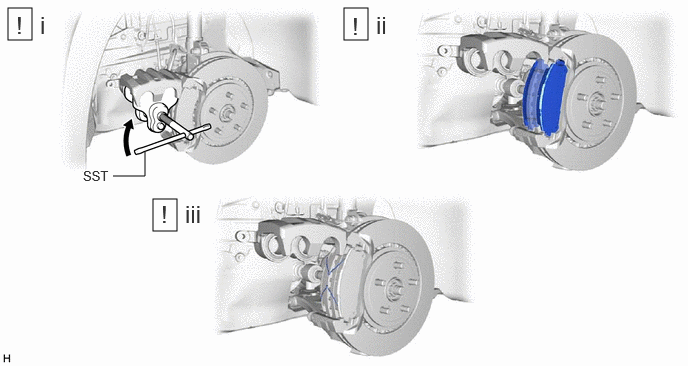

   1. Using SST, push in the front disc brake piston.
      • SST: 09719-77020
      NOTE:

      • Make sure that the brake fluid does not overflow from the reservoir.
      • Do not forcibly push in the front disc brake pistons.
   2. Install the 2 front disc brake pads to the front disc brake cylinder mounting.
      NOTE:

      • Keep the friction surfaces of the front disc brake pads and front disc free from oil and grease.
      • Install the front disc brake pad so that the pad wear indicator plate is mounted on the upper side of the vehicle.
   3. Install the 2 anti-squeal springs to the front disc brake pads.
      NOTE:

      • When replacing the front disc brake pads with new ones, make sure to replace the anti-squeal springs at the same time.
      • Be sure to install the anti-squeal springs into the front disc brake pad installation holes as far as they will go.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

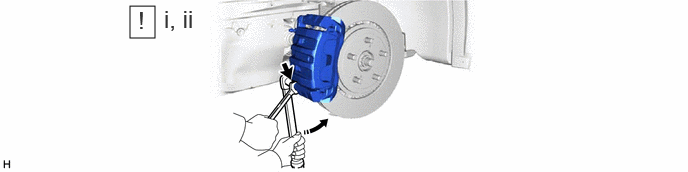

   1. Hold the front disc brake cylinder slide pin (lower side) and install the front disc brake cylinder assembly to the front disc brake cylinder mounting with the bolt.

      Torque: 45 N.m (459 kgf/cm, 33 ft.lbf)

      NOTE:

      • Install the front disc brake cylinder assembly while holding both of the front disc brake pads because the anti-squeal springs may fall off the front disc brake pads.
      • Be sure that the anti-squeal springs are installed to the front disc brake pads.
   2. for Gasoline Model:

      1. Depress the brake pedal several times.

Refer to ON-VEHICLE INSPECTION [09/2023 - ]

Refer to INSTALLATION [09/2023 - ]
