Removal [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL ENGINE ASSEMBLY TO ENGINE STAND
Refer to REMOVAL [12/2023 - ]
REMOVE V-RIBBED BELT

Refer to PROCEDURE - Step 3

REMOVE CRANKSHAFT PULLEY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CRANKSHAFT PULLEY SET BOLT	-	-
*a	Hold	-	-
	Turn	-	-

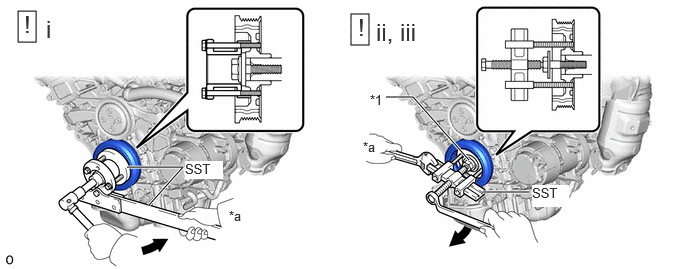

Using SST, hold the crankshaft pulley and loosen the crankshaft pulley set bolt. Further loosen the crankshaft pulley set bolt until 2 or 3 threads remain screwed into the crankshaft.
- SST: 09213-70011
  1. 09213-70020
- SST: 09330-00021
Apply lubricant to the threads and end of SST.
- SST: 09950-50013
  1. 09951-05010
  2. 09952-05010
  3. 09953-05020
  4. 09954-05021
Using SST, remove the crankshaft pulley set bolt and crankshaft pulley.

REMOVE TIMING CHAIN CASE OIL SEAL

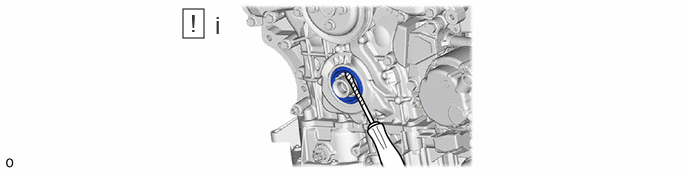

Using a screwdriver with its tip wrapped with protective tape, pry out the timing chain case oil seal.
NOTE:
After removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
