Removal [09/2023 - ]: Procedure

  1. REMOVE FRONT WHEELS

    Refer to REMOVAL [09/2023 - ]

  2. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. REMOVE FRONT FENDER APRON SEAL LH

    for Gasoline Model: Refer to PROCEDURE - Step 12

    for 1Motor-HEV Model: Refer to PROCEDURE - Step 11

  4. REMOVE FRONT FENDER APRON SEAL RH

    for Gasoline Model: Refer to PROCEDURE - Step 13

    for 1Motor-HEV Model: Refer to PROCEDURE - Step 12

  5. DRAIN AUTOMATIC TRANSAXLE FLUID (for Gasoline Model)

    Refer to PROCEDURE - Step 10

  6. DRAIN HYBRID TRANSAXLE FLUID (for 1Motor-HEV Model)

    Refer to PROCEDURE - Step 4

  7. DRAIN TRANSFER OIL (for Gasoline Model AWD)

    Refer to PROCEDURE - Step 2

  8. REMOVE FRONT AXLE SHAFT NUT

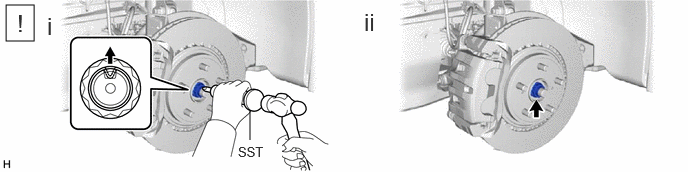

    1. GTY1198935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using SST and a hammer, release the staked part of the front axle shaft nut.
        • SST: 09930-00010
        NOTE:

        Fully loosen the staked part of the front axle shaft nut, otherwise the threads of the drive shaft may be damaged.

      2. While applying the brakes, using a 30 mm deep socket wrench, remove the front axle shaft nut.
  9. SEPARATE FRONT STABILIZER LINK ASSEMBLY
    Refer to PROCEDURE - Step 6 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 6 [12/2023 - ]
  10. SEPARATE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 10 [12/2023 - ]

  11. SEPARATE FRONT AXLE ASSEMBLY (w/o AVS)

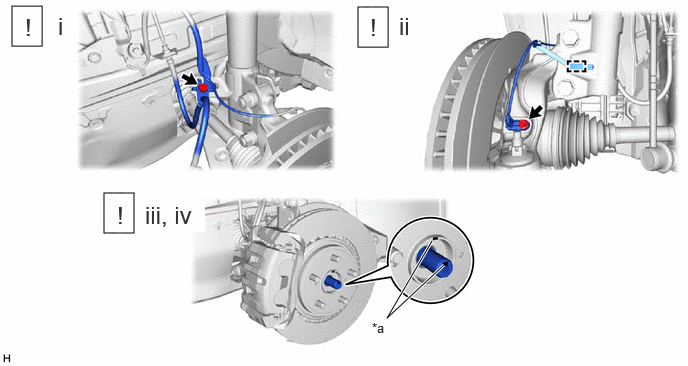

    1. GTY1202246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark - -
      1. Remove the bolt and separate the front speed sensor and front flexible hose from the front shock absorber assembly.
        NOTE:

        Be sure to separate the front speed sensor and front flexible hose from the front shock absorber assembly completely.

      2. Remove the bolt, disengage the clamp and separate the front speed sensor from the front shock absorber assembly and steering knuckle.
        NOTE:
        • Prevent foreign matter from contacting the sensor tip.
        • Be careful not to damage the front speed sensor.
        • Clean the speed sensor installation hole and the contact surfaces every time the front speed sensor is removed.
      3. Put matchmarks on the front drive shaft assembly and the front axle hub sub-assembly.
      4. Using a plastic hammer, separate the front drive shaft assembly from the front axle assembly.
        NOTE:
        • Do not damage the front axle outboard joint boot.
        • Do not push the front axle assembly towards the outside of the vehicle any further than necessary.

        HINT:

        If it is difficult to separate the front drive shaft assembly from the front axle assembly, tap the end of the front drive shaft assembly using a brass bar and a hammer.

  12. SEPARATE FRONT AXLE ASSEMBLY (w/ AVS)

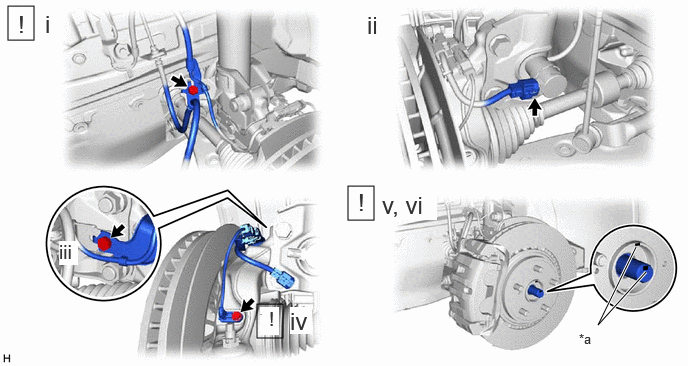

    1. GTY1240131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark - -
      1. Remove the bolt and separate the front speed sensor and front flexible hose from the front shock absorber assembly.
        NOTE:

        Be sure to separate the front speed sensor and front flexible hose from the front shock absorber assembly completely.

      2. Disconnect the AVS connector from the absorber control actuator.
        NOTE:

        Be careful not to damage the absorber control actuator or connector cover.

      3. Remove the bolt and separate the front skid control sensor wire from the front shock absorber assembly.
      4. Remove the bolt, separate the front speed sensor from the steering knuckle.
        NOTE:
        • Prevent foreign matter from contacting the sensor tip.
        • Be careful not to damage the front speed sensor.
        • Clean the speed sensor installation hole and the contact surfaces every time the front speed sensor is removed.
      5. Put matchmarks on the front drive shaft assembly and the front axle hub sub-assembly.
      6. Using a plastic hammer, separate the front drive shaft assembly from the front axle assembly.
        NOTE:
        • Do not damage the front axle outboard joint boot.
        • Do not push the front axle assembly towards the outside of the vehicle any further than necessary.

        HINT:

        If it is difficult to separate the front drive shaft assembly from the front axle assembly, tap the end of the front drive shaft assembly using a brass bar and a hammer.

  13. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH

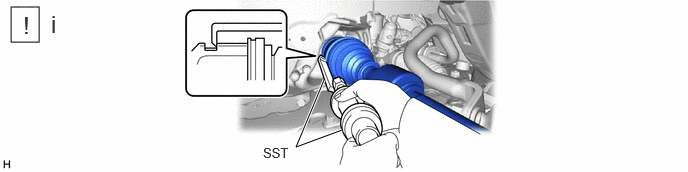

    1. GTY1202854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using SST, remove the front drive shaft assembly LH.
        • SST: 09520-01011
        • SST: 09520-20010
          1. 09521-02010
          2. 09521-02040
          3. 09521-02060
        NOTE:
        • Do not damage the front drive shaft oil seal LH.
        • Do not damage the front axle inboard joint boot.
        • Do not damage the front drive shaft dust cover LH.
        • Do not drop the front drive shaft assembly LH.
  14. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH
    1. for Gasoline Model 2WD, 1Motor-HEV Model:

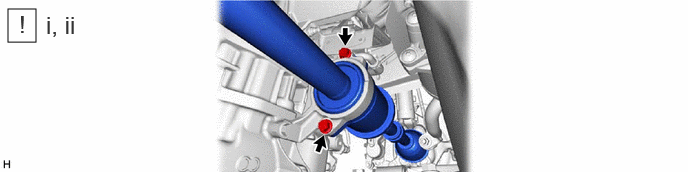

      GTY1199664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 bolts and pull out the front drive shaft assembly RH together with the drive shaft bearing case sub-assembly.
      2. Remove the front drive shaft assembly RH from the drive shaft bearing bracket.
        NOTE:
        • Do not damage the front drive shaft oil seal RH.
        • Do not damage the front axle inboard joint boot.
        • Do not damage the front drive shaft dust cover RH.
        • Do not drop the front drive shaft assembly RH.

        HINT:

        If it is difficult to disengage the fitting, tap the end of the front drive inboard joint assembly with a brass bar and a hammer.

    2. for Gasoline Model AWD:

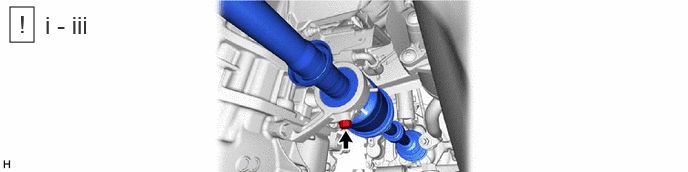

      GTY1194398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Separate the drive shaft bearing bracket hole snap ring from the drive shaft bearing bracket.
      2. Remove the No. 1 drive shaft bearing bracket setting bolt and front drive shaft assembly RH from the transfer assembly.
        NOTE:
        • Do not damage the transfer case oil seal RH.
        • Do not damage the front axle inboard joint boot.
        • Do not damage the front drive shaft dust cover RH.
        • Do not drop the front drive shaft assembly RH.

        HINT:

        If it is difficult to disengage the fitting, tap the end of the front drive inboard joint assembly with a brass bar and a hammer.

      3. Remove the drive shaft bearing bracket hole snap ring from the front drive shaft assembly RH.
  15. REMOVE FRONT DRIVE SHAFT HOLE SNAP RING
    1. GTY1060756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
