Removal [12/2023 - ]: Procedure
- REMOVE FRONT WHEELS
Refer to REMOVAL [09/2023 - ]

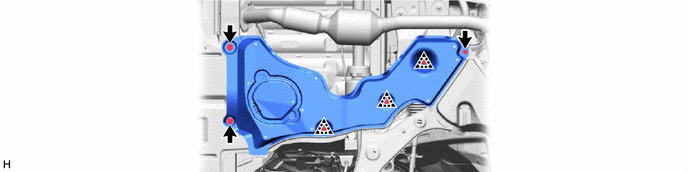

- REMOVE REAR ENGINE UNDER COVER LH

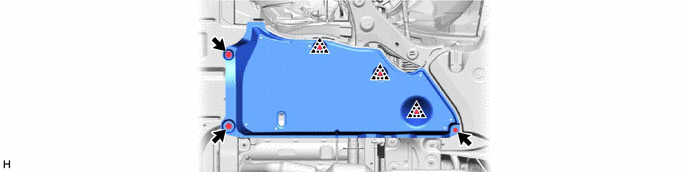

- REMOVE REAR ENGINE UNDER COVER RH
- REMOVE FRONT FENDER APRON SEAL LH
Refer to PROCEDURE - Step 12
- REMOVE FRONT FENDER APRON SEAL RH
Refer to PROCEDURE - Step 13
- DRAIN HYBRID TRANSAXLE FLUID
Refer to PROCEDURE - Step 2
- REMOVE FRONT AXLE SHAFT NUT

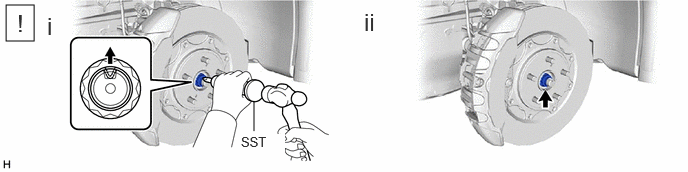

- Using SST and a hammer, release the staked part of the front axle shaft nut.
- SST: 09930-00010
NOTE:Fully loosen the staked part of the front axle shaft nut, otherwise the threads of the drive shaft may be damaged.
- While applying the brakes, using a 30 mm deep socket wrench, remove the front axle shaft nut.
- Using SST and a hammer, release the staked part of the front axle shaft nut.
- SEPARATE FRONT STABILIZER LINK ASSEMBLY
Refer to PROCEDURE - Step 6 - SEPARATE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY
Refer to PROCEDURE - Step 10

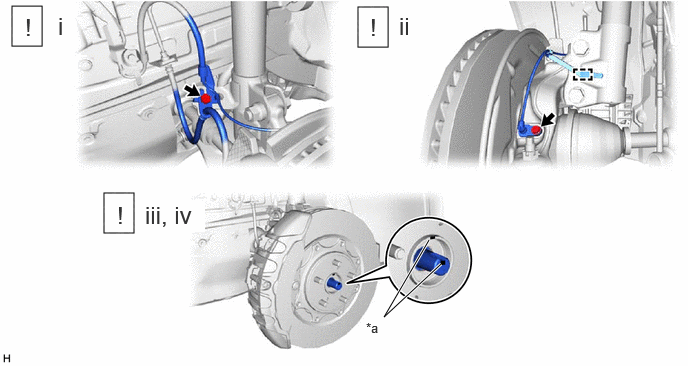

- SEPARATE FRONT AXLE ASSEMBLY
*a Matchmark - - - Remove the bolt and separate the front speed sensor and front flexible hose from the front shock absorber assembly.NOTE:
Be sure to separate the front speed sensor and front flexible hose from the front shock absorber assembly completely.
- Remove the bolt, disengage the clamp and separate the front speed sensor from the front shock absorber assembly and steering knuckle.NOTE:
- Prevent foreign matter from contacting the sensor tip.
- Be careful not to damage the front speed sensor.
- Clean the speed sensor installation hole and the contact surfaces every time the front speed sensor is removed.
- Put matchmarks on the front drive shaft assembly and the front axle hub sub-assembly.
- Using a plastic hammer, separate the front drive shaft assembly from the front axle assembly.NOTE:
- Do not damage the front axle outboard joint boot.
- Do not push the front axle assembly towards the outside of the vehicle any further than necessary.
HINT:
If it is difficult to separate the front drive shaft assembly from the front axle assembly, tap the end of the front drive shaft assembly using a brass bar and a hammer.
- Remove the bolt and separate the front speed sensor and front flexible hose from the front shock absorber assembly.
- REMOVE FRONT DRIVE SHAFT ASSEMBLY LH

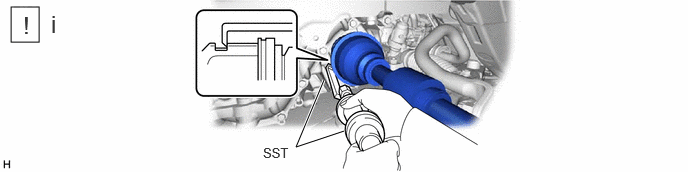

- Using SST, remove the front drive shaft assembly LH.
- SST: 09520-01011
- SST: 09520-20010
- 09521-02010
- 09521-02040
- 09521-02060
NOTE:- Do not damage the front drive shaft oil seal LH.
- Do not damage the front axle inboard joint boot.
- Do not damage the front drive shaft dust cover LH.
- Do not drop the front drive shaft assembly LH.
- Using SST, remove the front drive shaft assembly LH.
- REMOVE FRONT DRIVE SHAFT ASSEMBLY RH

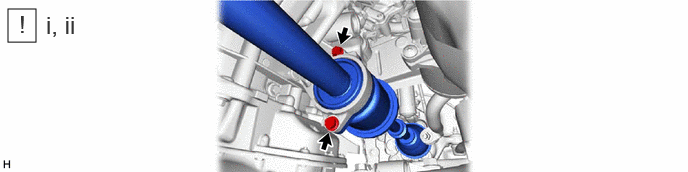

- Remove the 2 bolts and pull out the front drive shaft assembly RH together with the drive shaft bearing case sub-assembly.
- Remove the front drive shaft assembly RH from the drive shaft bearing bracket.NOTE:
- Do not damage the front drive shaft oil seal RH.
- Do not damage the front axle inboard joint boot.
- Do not damage the front drive shaft dust cover RH.
- Do not drop the front drive shaft assembly RH.
HINT:
If it is difficult to disengage the fitting, tap the end of the front drive inboard joint assembly with a brass bar and a hammer.
- REMOVE FRONT DRIVE SHAFT HOLE SNAP RING
