Removal [09/2023 - ]: Procedure

  1. REMOVE BATTERY

    Refer to REMOVAL [09/2023 - ]

  2. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
    Refer to PROCEDURE - Step 25
  3. REMOVE NO. 3 ENGINE COVER

    Refer to PROCEDURE - Step 26

  4. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 13

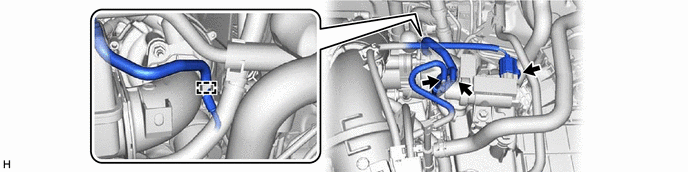

  5. DISCONNECT VACUUM HOSES AND CONNECTOR
    1. GTY1200607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE COMPRESSOR INLET ELBOW SUB-ASSEMBLY
    Refer to PROCEDURE - Step 15

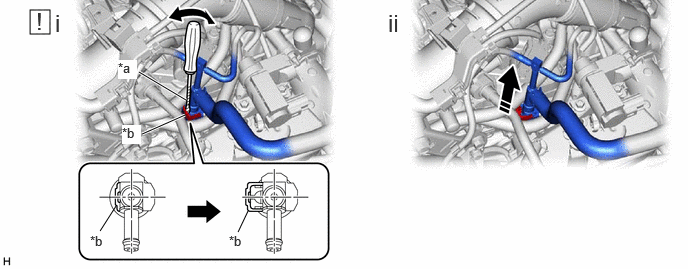

  7. DISCONNECT NO. 1 VACUUM HOSE CONNECTOR
    1. GTY1196320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape *b Retainer
      Pull off - -
      1. Using a screwdriver with its tip wrapped with protective tape, pull out the retainer as shown in the illustration.
      2. Pull off the No. 1 vacuum hose connector.

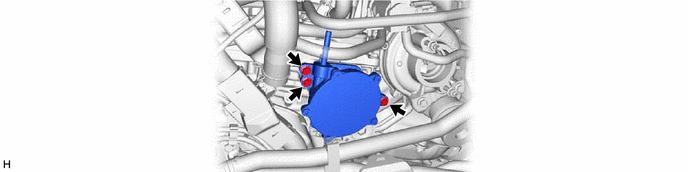

  8. REMOVE VACUUM PUMP ASSEMBLY
    1. GTY1063910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 1 VACUUM PUMP O-RING
    1. GTY1063891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
