Caution / Notice / Hint
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during windshield glass removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Windshield glass* | Adjust forward recognition camera |
|
One Time Recognition: Refer to TARGET ADJUSTMENT(ONE TIME RECOGNITION) [09/2023 - ] Driving Adjustment: Refer to DRIVING ADJUSTMENT [09/2023 - ] |
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
NOTE:
- After cutting off the old adhesive remaining on the adhesion surface, apply new adhesive within 2 hours.
- If the cut surface of the old adhesive is left exposed for a long time, the adhesion strength will be reduced, so apply the new adhesive quickly.
- When replacing the windshield glass of a vehicle equipped with a forward recognition camera, make sure to use a Lexus genuine part. If a non-Lexus genuine part is used, the forward recognition camera may not be able to be installed due to a missing bracket. Also, the front camera system, adaptive high beam system, automatic high beam system or traffic jam assist system may not operate properly due to a difference in the transmissivity or black ceramic border.
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.

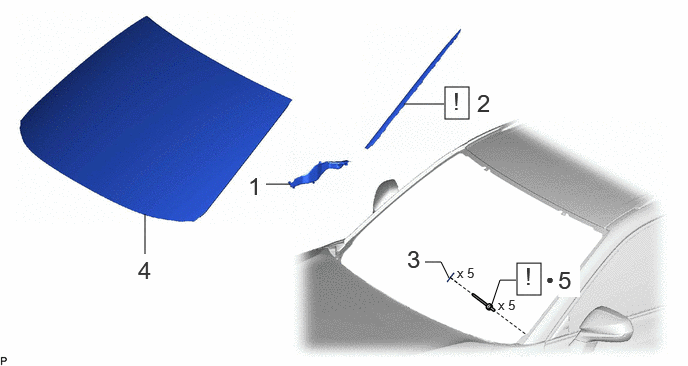

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | FRONT FENDER TO COWL SIDE SEAL | 53867H | - | - | - |
| 2 | WINDSHIELD LOWER OUTSIDE MOULDING | 75536D | See step 2 | - | - |
| 3 | NO. 1 WINDSHIELD OUTSIDE MOULDING CLIP | 75545B | - | - | - |
| 4 | WINDSHIELD GLASS | 56111 | - | - | - |
| 5 | NO. 3 WINDSHIELD OUTSIDE MOULDING CLIP | 75547C | See step 5 | - | - |
| • | Non-reusable part | - | - |
