Removal [09/2023 - ]: Procedure

See step  1

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

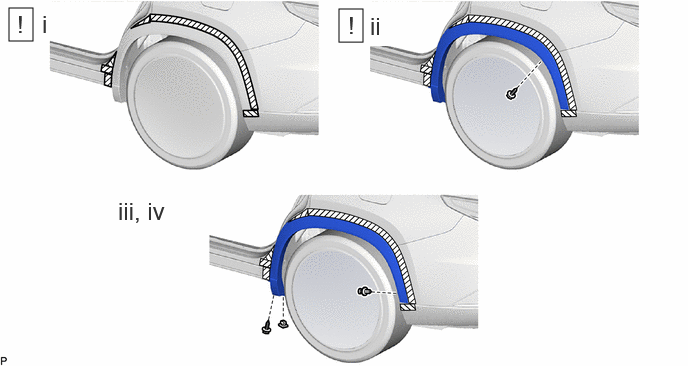

   1. Apply protective tape around the quarter panel wheel opening moulding as shown in the illustration.
   2. Using a T25 "TORX" socket wrench, remove the screw.
   3. Remove the clip and screw.
   4. Remove the grommet.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Place Hand Here		Remove in this Direction (1)
   	Remove in this Direction (2)	-	-

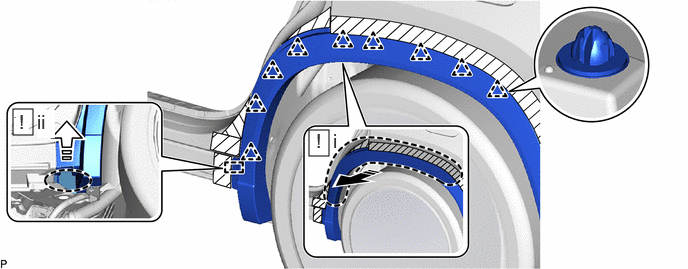

   1. Disengage the 9 clips as shown in the illustration.
   2. Disengage the guide as shown in the illustration.

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Push		Place Hand Here
   	Remove in this Direction	-	-

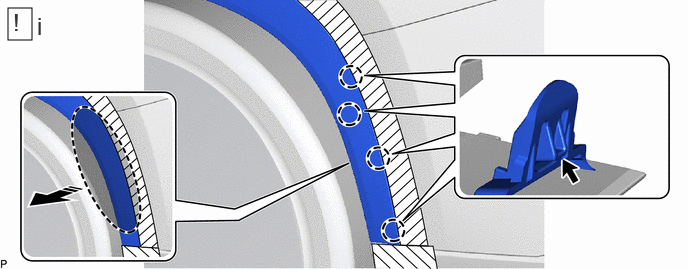

   1. Disengage the 4 claws by pushing the area indicated by the arrow in the illustration with a finger.
      NOTE:

      To avoid damaging the claws, do not forcibly pull the quarter panel wheel opening moulding.

4. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

   -

   -

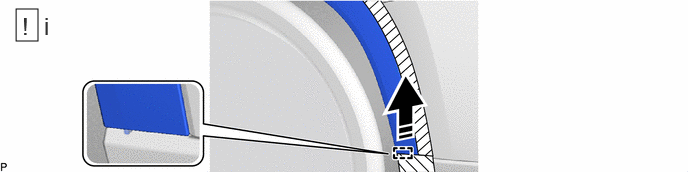

   1. Disengage the guide to remove the quarter panel wheel opening moulding as shown in the illustration.
