Removal [09/2023 - ]: Procedure

  1. DISCONNECT FRONT FENDER LINER

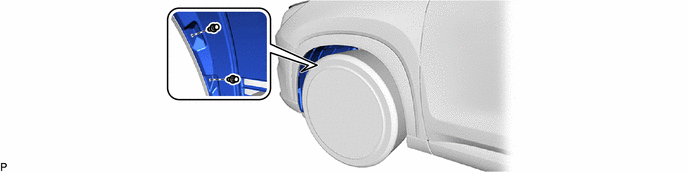

    1. GTY1234957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT FENDER MUDGUARD (w/ Mudguard)
    See step  1
  3. REMOVE FRONT FENDER WHEEL OPENING MOULDING SUB-ASSEMBLY

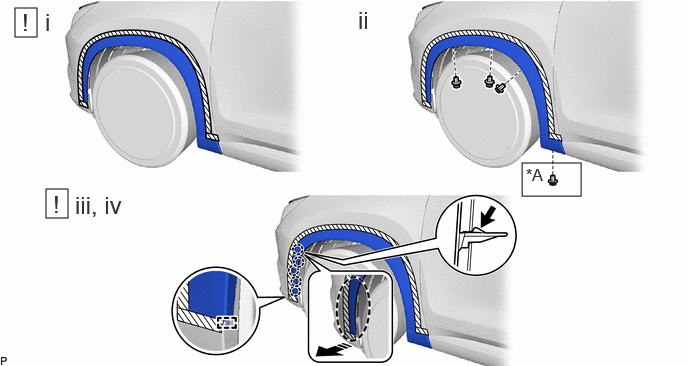

    1. GTY1228912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Mudguard - -
      Push Place Hand Here
      Remove in this Direction - -
      1. Apply protective tape around the front fender wheel opening moulding sub-assembly as shown in the illustration.
      2. Remove each clip.
      3. Disengage the 5 claws by pushing the area indicated by the arrow in the illustration with a finger.
        NOTE:

        To avoid damaging the claws, do not forcibly pull the front fender wheel opening moulding sub-assembly.

      4. Disengage the guide.

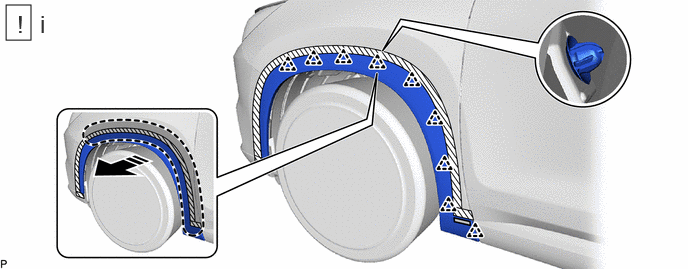

    2. GTY1237028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
      1. Disengage the 9 clips and separate the double-sided tape to remove the front fender wheel opening moulding sub-assembly.
