Removal [09/2023 - ]: Procedure

  1. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY

    Refer to REMOVAL [09/2023 - ]

  2. REMOVE ROOF RACK ASSEMBLY

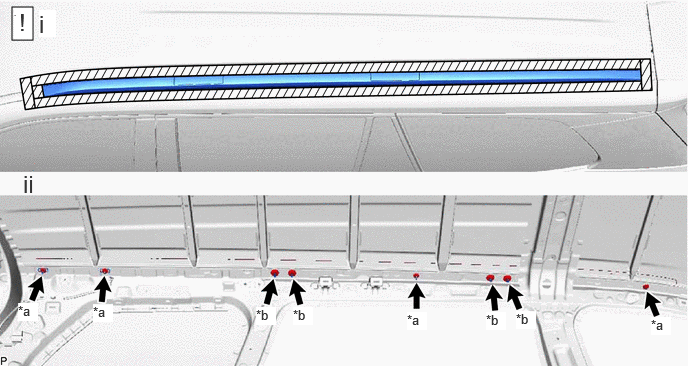

    1. GTY1236129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Nut (A) *b Nut (B)
      1. Apply protective tape around the roof rack assembly as shown in the illustration.
      2. Remove the 8 nuts and roof rack assembly.
