Disassembly [09/2023 - ]: Procedure

  1. REMOVE NO. 1 ROOF SIDE GARNISH LID

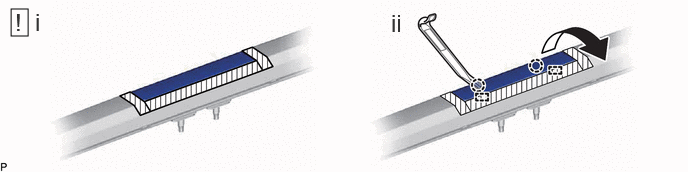

    1. GTY1199791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply protective tape around the No. 1 roof side garnish lid as shown in the illustration.
      2. Using a moulding remover, disengage the 2 claws and 2 guides to remove the No. 1 roof side garnish lid as shown in the illustration.
  2. REMOVE NO. 2 ROOF SIDE GARNISH LID

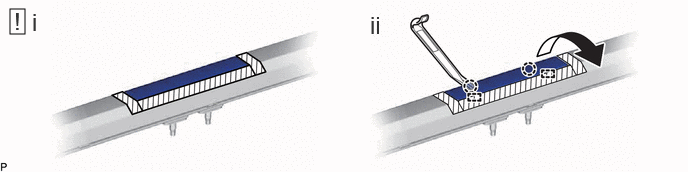

    1. GTY1199520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply protective tape around the No. 2 roof side garnish lid as shown in the illustration.
      2. Using a moulding remover, disengage the 2 claws and 2 guides to remove the No. 2 roof side garnish lid as shown in the illustration.
