Removal [09/2023 - ]: Procedure

  1. REMOVE ROOF RACK ASSEMBLY

    Refer to REMOVAL [09/2023 - ]

  2. REMOVE ROOF DRIP SIDE FINISH MOULDING

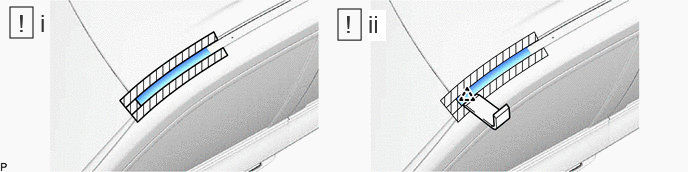

    1. GTY1196993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply protective tape around the roof drip side finish moulding as shown in the illustration.
      2. Using a moulding remover, disengage the clip to remove the roof drip side finish moulding as shown in the illustration.
        NOTE:
        • Do not remove the roof drip side finish moulding clip.
        • If a roof drip side finish moulding clip is damaged or falls off, replace it with a new one.
  3. REMOVE REAR ROOF DRIP SIDE FINISH MOULDING

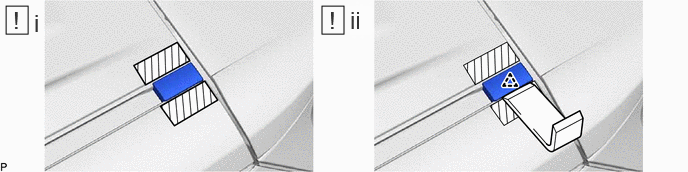

    1. GTY1236059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply protective tape around the rear roof drip side finish moulding as shown in the illustration.
      2. Using a moulding remover, disengage the clip to remove the rear roof drip side finish moulding as shown in the illustration.
        NOTE:
        • Do not remove the roof drip side finish moulding clip.
        • If a roof drip side finish moulding clip is damaged or falls off, replace it with a new one.
