Removal [09/2023 - ]: Procedure

  1. REMOVE FRONT FENDER WHEEL OPENING MOULDING SUB-ASSEMBLY

    Refer to REMOVAL [09/2023 - ]

  2. REMOVE QUARTER PANEL WHEEL OPENING MOULDING

    Refer to REMOVAL [09/2023 - ]

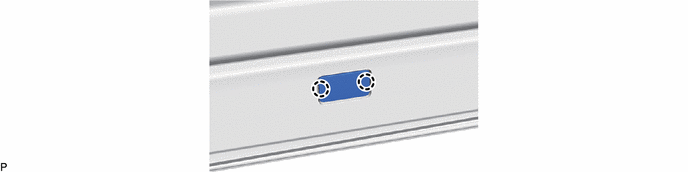

  3. REMOVE ROCKER PANEL MOULDING COVER
    1. GTY1202517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the front side and rear side.

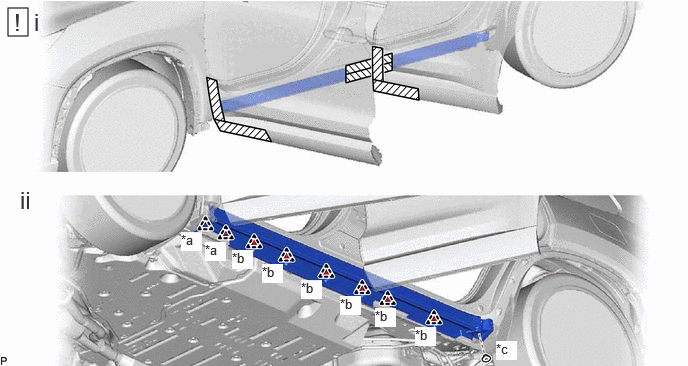

  4. REMOVE BODY ROCKER PANEL MOULDING ASSEMBLY
    1. GTY1233859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip (A) *b Clip (B)
      *c Grommet - -
      1. Apply protective tape around the body rocker panel moulding assembly as shown in the illustration.
      2. Remove the 8 clips and grommet.

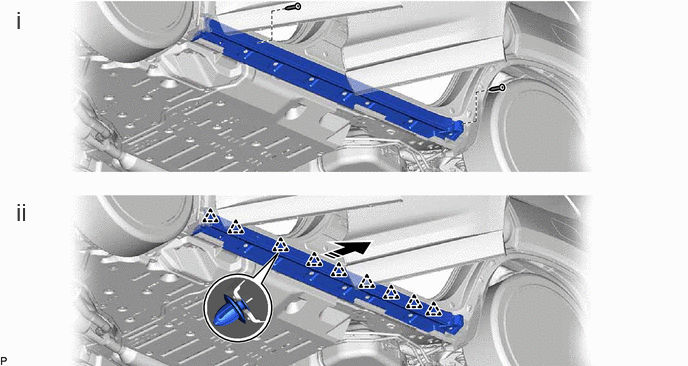

    2. GTY1231302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Remove the 2 screws.
      2. Disengage the 9 clips to remove the body rocker panel moulding assembly as shown in the illustration.
