Caution / Notice / Hint

COMPONENTS (REMOVAL)

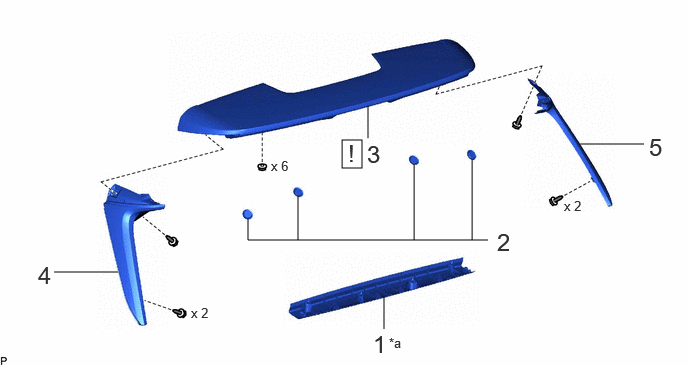

Fig 1: Rear Spoiler Removal Components
GTY1234246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 BACK DOOR CENTER GARNISH 67939B - - -
2 HOLE PLUG - - - -
3 REAR SPOILER SUB-ASSEMBLY 76085 See step  3 - -
4 REAR SIDE SPOILER SUB-ASSEMBLY LH 76088B - - -
5 REAR SIDE SPOILER SUB-ASSEMBLY RH 76087B - - -
*a HINT:
As the illustration shown is an example, the actual details may differ.
- -
