Caution / Notice / Hint

COMPONENTS (DISASSEMBLY)

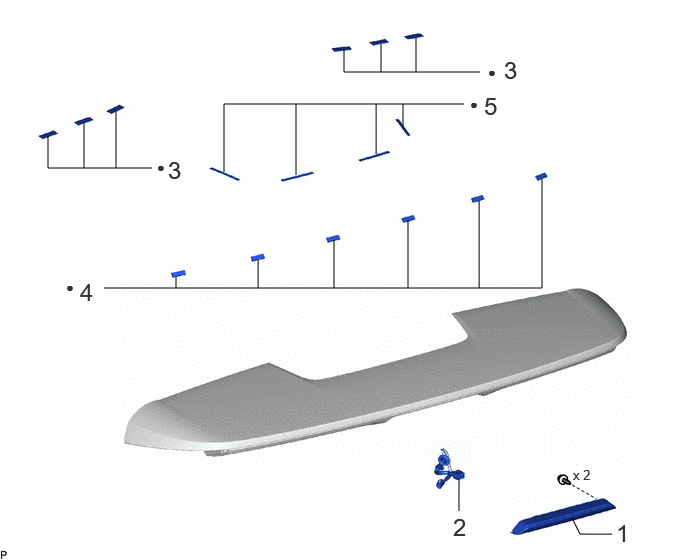

Fig 1: Rear Spoiler Disassembly Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	CENTER STOP LIGHT ASSEMBLY	81570	-	-	-
2	CENTER STOP LIGHT CORD ASSEMBLY	81935D	-	-	-
3	NO. 1 REAR SPOILER PROTECTOR	76872	-	-	-
4	NO. 2 REAR SPOILER PROTECTOR	76873	-	-	-
5	PROTECTOR	-	-	-	-

•

Non-reusable part
