Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during rear door window frame upper moulding removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Power window regulator motor assembly LH* Power window regulator motor assembly RH* Rear door window regulator sub-assembly LH* Rear door window regulator sub-assembly RH* Rear door glass sub-assembly LH* Rear door glass sub-assembly RH* Rear door glass run LH* Rear door glass run RH*	Initialize power window control system	Auto up and down function Remote control function Key-off operation function Wireless transmitter-linked function Key-linked function Window open warning function Catch protection function Jam protection function	Refer to REGISTRATION [09/2023 - ]
Auxiliary battery terminal is disconnected/reconnected	Operate the multiplex network master switch assembly (retractable outer mirror switch) to extend and retract the outer rear view mirror assembly	Parking Support Brake System*2	Refer to INITIALIZATION [09/2023 - ]

*1: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

*2: When "[Parking Support Brake System icon] System Stopped See Owner's Manual" is displayed on the multi-information display.

NOTE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
Refer to BEFORE DISCONNECTING BATTERY [09/2023 - ]
To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.
Refer to INSPECTION MODE PROCEDURE [09/2023 - ]

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

LEARNING COMPLETES WHEN VEHICLE IS DRIVEN

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted.	Refer to PRECAUTION [09/2023 - ]
Lighting System (w/ Automatic Headlight Beam Level Control System)	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	Refer to INITIALIZATION [09/2023 - ]
Front Camera System
Adaptive High Beam System

LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power Back Door System	Reset back door close position	Refer to INITIALIZATION [09/2023 - ]
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.

COMPONENTS (REMOVAL)

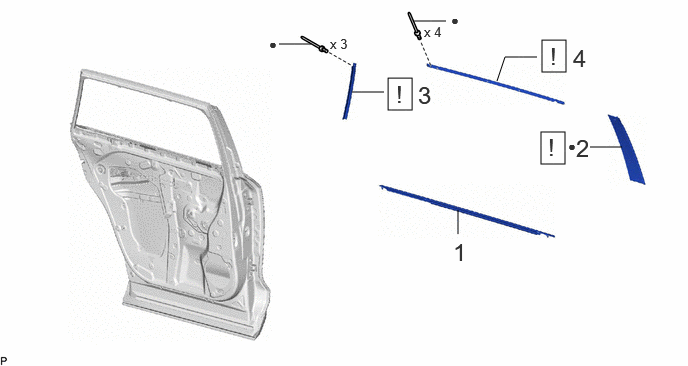

Fig 1: Rear Door Window Frame Moulding Removal Components

Procedure		Part Name Code
1	REAR DOOR BELT MOULDING ASSEMBLY	75740	-	-	-
2	REAR DOOR WINDOW FRAME FRONT MOULDING	75762A	See step 2	-	-
3	REAR DOOR WINDOW FRAME REAR MOULDING	75766A	See step 3	-	-
4	REAR DOOR WINDOW FRAME UPPER MOULDING	75764A	See step 4	-	-

•

Non-reusable part
