Removal [09/2023 - ]: Procedure

  1. REMOVE REAR DOOR OUTSIDE MOULDING SUB-ASSEMBLY

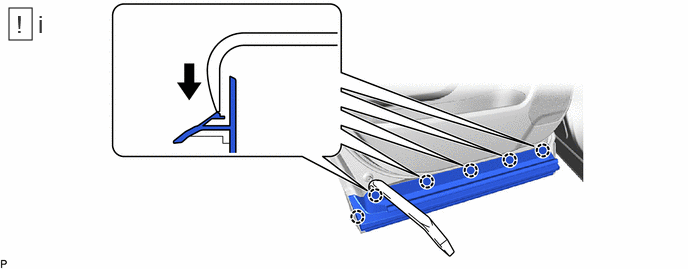

    1. GTY1196312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push - -
      1. Using a moulding remover, disengage the 6 claws.

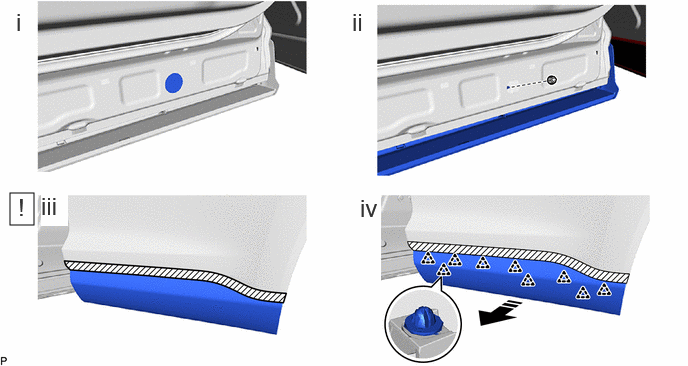

    2. GTY1200702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Remove the plug plate.
      2. Remove the nut.
      3. Apply protective tape around the rear door outside moulding sub-assembly as shown in the illustration.
      4. Disengage the 9 clips to remove the rear door outside moulding sub-assembly.
