Caution / Notice / Hint

COMPONENTS (REASSEMBLY)

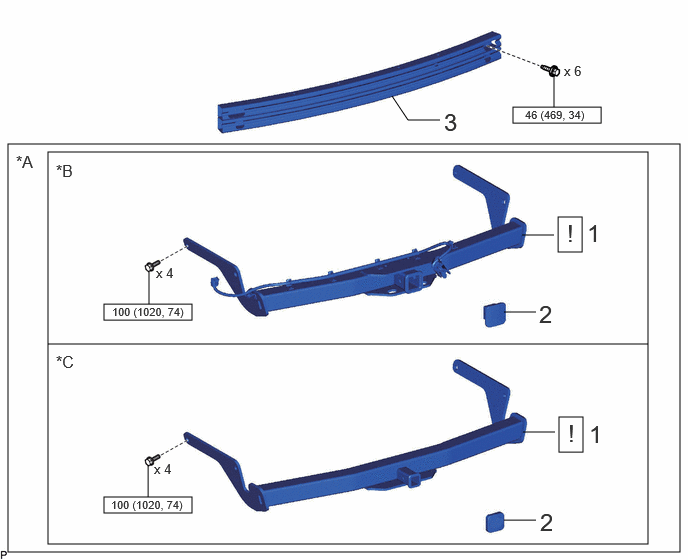

Fig 1: Rear Bumper Reassembly Components With Torque Specifications (1 Of 5)
GTY1201028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 RECEIVER HITCH BRACKET SUB-ASSEMBLY 51908F See step  1 - -
2 RECEIVER HITCH CAP 51997B - - -
3 REAR BUMPER REINFORCEMENT 52171C - - -
*A w/ Towing Hitch *B w/o Activity Mount
*C w/ Activity Mount - -
N.m (kgf/cm, ft.lbf): Specified torque - -

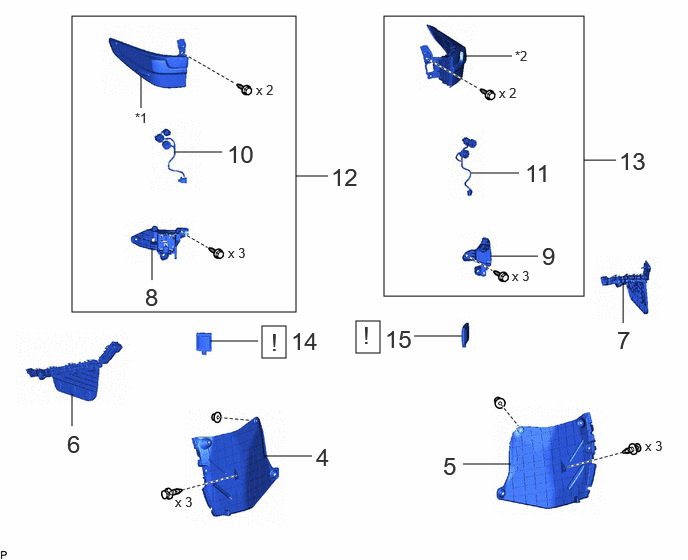

Fig 2: Rear Bumper Reassembly Components (2 Of 5)
GTY1230354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
4 REAR BUMPER SIDE SEAL LH 52592 - - -
5 REAR BUMPER SIDE SEAL RH 52591 - - -
6 REAR BUMPER SIDE RETAINER LH 52576 - - -
7 REAR BUMPER SIDE RETAINER RH 52575 - - -
8 REAR BUMPER UPPER RETAINER LH 52563A - - -
9 REAR BUMPER UPPER RETAINER RH 52562B - - -
10 REAR COMBINATION LIGHT SOCKET AND WIRE LH - - - -
11 REAR COMBINATION LIGHT SOCKET AND WIRE RH - - - -
12 REAR COMBINATION LIGHT ASSEMBLY WITH RETAINER LH - - - -
13 REAR COMBINATION LIGHT ASSEMBLY WITH RETAINER RH - - - -
14 BLIND SPOT MONITOR SENSOR LH 88172 See step  14 - -
15 BLIND SPOT MONITOR SENSOR RH 88162 See step  15 - -
*1 REAR COMBINATION LIGHT SUB-ASSEMBLY LH *2 REAR COMBINATION LIGHT SUB-ASSEMBLY RH

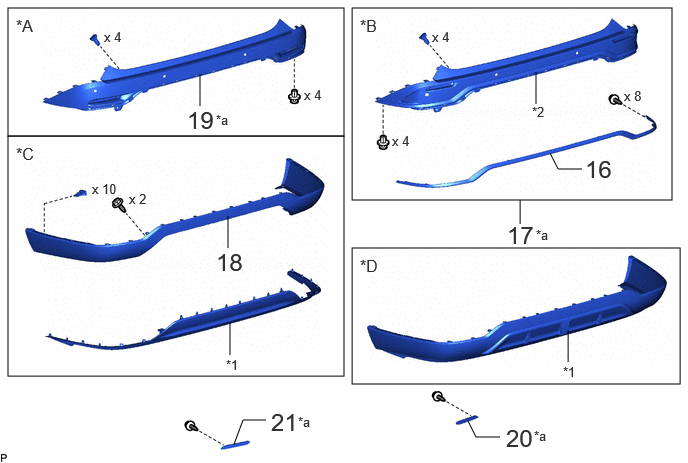

Fig 3: Rear Bumper Reassembly Components (3 Of 5)
GTY1235297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
16 REAR BUMPER MOULDING 52751 - - -
17 REAR BUMPER CENTER EXTENSION SUB-ASSEMBLY 52108C - - -
18 REAR BUMPER COVER 52159 - - -
19 REAR BUMPER EXTENSION 52151G - - -
20 REFLEX REFLECTOR ASSEMBLY LH 81920 - - -
21 REFLEX REFLECTOR ASSEMBLY RH 81910 - - -
*A except Sport Package *B for Sport Package
*C for Type A *D for Type B
*a HINT:
As the illustration shown is an example, the actual details may differ.		 - -
*1 REAR BUMPER COVER *2 REAR BUMPER EXTENSION

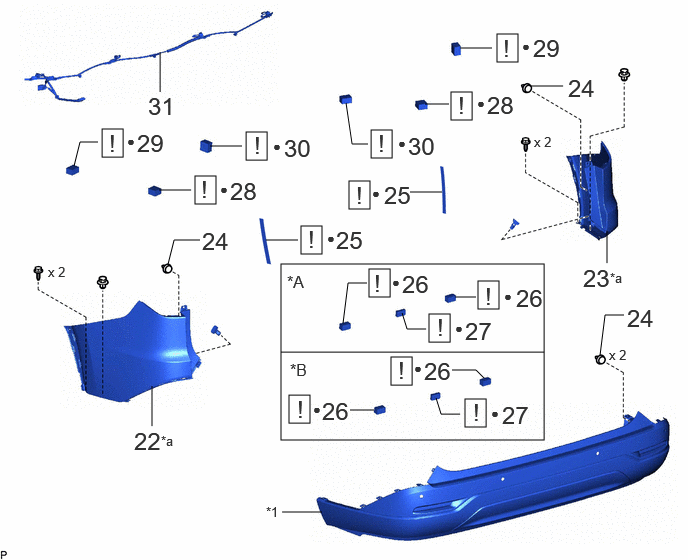

Fig 4: Rear Bumper Reassembly Components (4 Of 5)
GTY1236651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
22 REAR BUMPER UPPER COVER LH 52166A - - -
23 REAR BUMPER UPPER COVER RH 52165A - - -
24 BACK DOOR GARNISH RETAINER 76829A - - -
25 NO. 1 MOULDING TAPE 75895N See step  25 - -
26 NO. 5 REAR BUMPER PAD 52461P See step  26 - -
27 NO. 3 REAR BUMPER PAD 52461M See step  27 - -
28 NO. 2 REAR BUMPER PAD 52461L See step  28 - -
29 NO. 4 REAR BUMPER PAD 52461N See step  29 - -
30 NO. 1 REAR BUMPER PAD 52461K See step  30 - -
31 NO. 2 LUGGAGE ROOM WIRE 82182 - - -
*A for Type A *B for Type B
*a HINT:
As the illustration shown is an example, the actual details may differ.		 - -
*1 REAR BUMPER COVER SUB-ASSEMBLY - -
• Non-reusable part - -

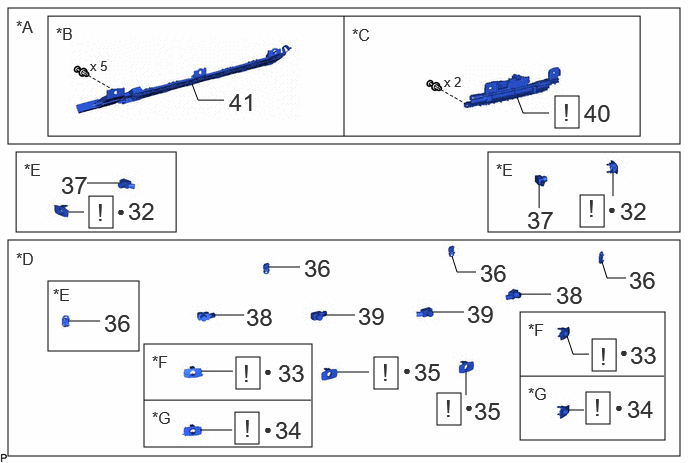

Fig 5: Rear Bumper Reassembly Components (5 Of 5)
GTY1228693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
32 REAR SIDE ULTRASONIC SENSOR RETAINER 89C48C See step  32 - -
33 REAR CORNER ULTRASONIC SENSOR RETAINER 89C48A See step  33 - -
34 REAR CORNER ULTRASONIC SENSOR RETAINER 89C48A See step  34 - -
35 REAR CENTER ULTRASONIC SENSOR RETAINER 89C48B See step  35 - -
36 REAR NO. 2 ULTRASONIC SENSOR CLIP 89349C - - -
37 REAR SIDE ULTRASONIC SENSOR 89342B - - -
38 REAR CORNER ULTRASONIC SENSOR 89342 - - -
39 REAR CENTER ULTRASONIC SENSOR 89342A - - -
40 KICK DOOR CONTROL SENSOR WITH BRACKET - See step  40 - -
41 KICK DOOR CONTROL SENSOR ASSEMBLY 891B0 - - -
*A w/ Kick Sensor *B w/o Towing Hitch
*C w/ Towing Hitch *D w/ Parking Support Brake System
*E w/ Advanced Park *F except Sport Package
*G for Sport Package - -
• Non-reusable part - -
