Removal [09/2023 - ]: Procedure

  1. REMOVE QUARTER PILLAR COVER SUB-ASSEMBLY

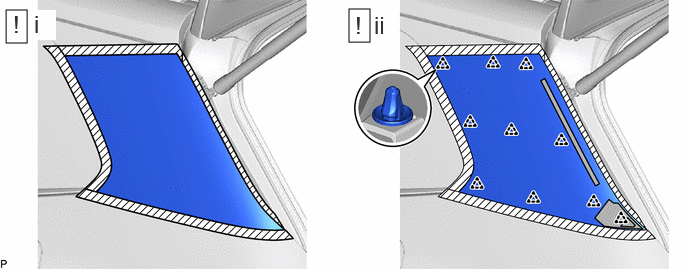

    1. GTY1229030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply protective tape around the quarter pillar cover sub-assembly as shown in the illustration.
      2. Disengage the 10 clips and separate the double-sided tape to remove the quarter pillar cover sub-assembly.
