Caution / Notice / Hint

COMPONENTS (REMOVAL)

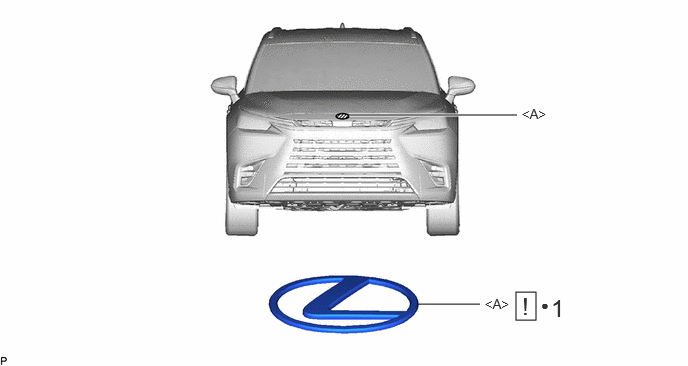

Fig 1: Name Plate Removal Components [09/2023 - 12/2023] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	RADIATOR GRILLE (OR FRONT PANEL) EMBLEM	75311	See step 1	-	-

•

Non-reusable part

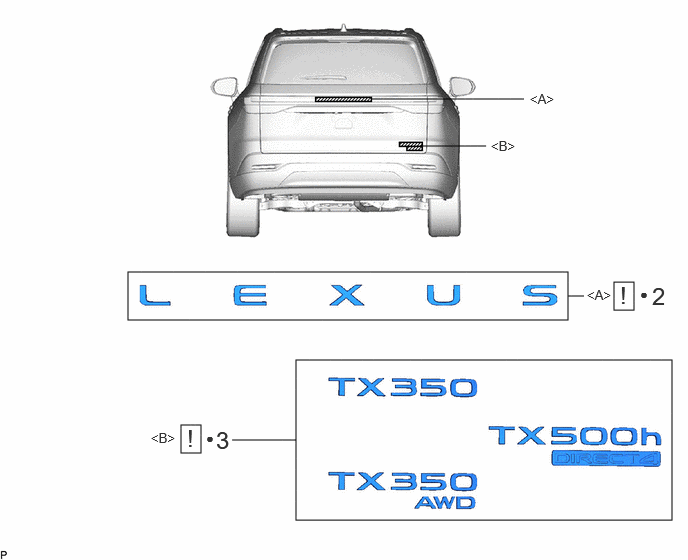

Fig 2: Name Plate Removal Components [09/2023 - 12/2023] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
2	NO. 2 BACK DOOR NAME PLATE	75442A	See step 2	-	-
3	NO. 1 BACK DOOR NAME PLATE	75441E	See step 3	-	-

•

Non-reusable part

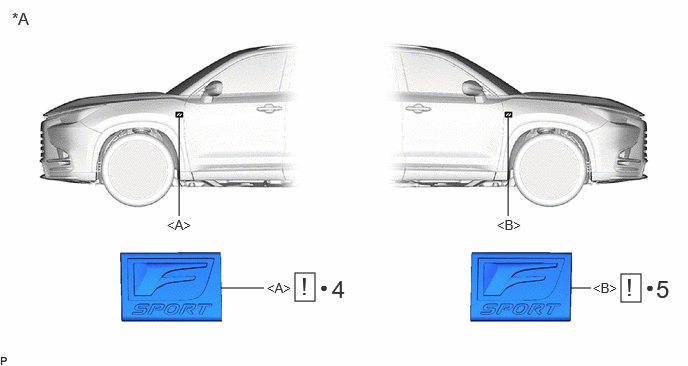

Fig 3: Name Plate Removal Components [09/2023 - 12/2023] (3 Of 3)

Procedure		Part Name Code
4	FRONT NO. 2 FENDER NAME PLATE	75362	See step 4	-	-
5	FRONT NO. 1 FENDER NAME PLATE	75361A	See step 5	-	-

*A	for Sport Package	-	-
•	Non-reusable part	-	-
