HINT:

• Use the same procedure for the RH side and LH side.
• The following procedure is for the LH side.

COMPONENTS (REMOVAL)

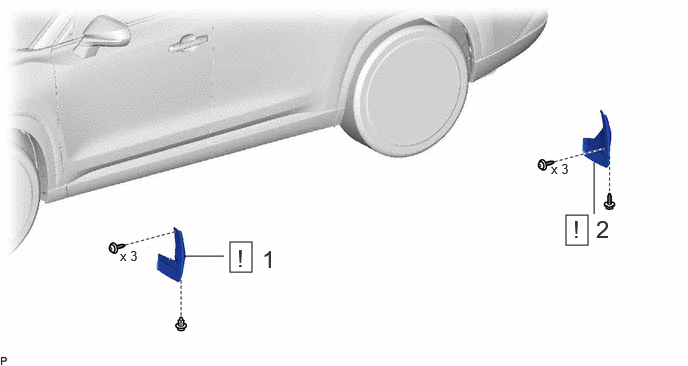

Fig 1: Mudguard Removal Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	FRONT FENDER MUDGUARD	76622C	See step  1	-	-
2	QUARTER PANEL REAR MUDGUARD	76626D	See step  2	-	-
