Reassembly [09/2023 - ]: Procedure

  1. INSTALL FRONT FENDER PANEL
  2. INSTALL NO. 2 FRONT SIDE AIR GUIDE

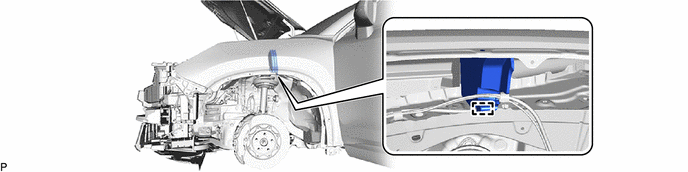

    1. GTY1234880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT NO. 2 FENDER NAME PLATE (for Sport Package)
    See step  1 [09/2023 - 12/2023], or see step  1 [12/2023 - ]
  4. INSTALL FRONT FENDER SIDE PANEL PROTECTOR
  5. INSTALL FRONT FENDER SEAL
  6. INSTALL FRONT FENDER LINER
  7. INSTALL FRONT WHEEL OPENING EXTENSION PAD
  8. INSTALL WHEEL ASSEMBLY
  9. INSTALL FRONT FENDER SPLASH SHIELD SEAL FRONT
  10. INSTALL FRONT FENDER TO COWL SIDE SEAL
  11. INSTALL FRONT BUMPER SIDE RETAINER
  12. INSTALL HEADLIGHT ASSEMBLY

    Refer to INSTALLATION [09/2023 - ]

  13. INSTALL FRONT FENDER WHEEL OPENING MOULDING SUB-ASSEMBLY

    Refer to INSTALLATION [09/2023 - ]

  14. ADJUST FRONT DOOR

    Refer to ADJUSTMENT [09/2023 - ]

  15. ADJUST HOOD SUB-ASSEMBLY

    Refer to ADJUSTMENT [09/2023 - ]
