Caution / Notice / Hint
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front fender panel removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Front television camera assembly*1 | Front television camera view adjustment | Panoramic View Monitor System | Refer to CALIBRATION [09/2023 - ] |
| Advanced Park | Refer to CALIBRATION [09/2023 - ] | ||
Replacement or removal and installation of 2 or more parts:
|
Television camera view adjustment | Panoramic View Monitor System | Refer to CALIBRATION [09/2023 - ] |
| Tires | for Gasoline Model AWD:
|
Dynamic Torque Control AWD System | Refer to CALIBRATION [09/2023 - ] |
|
Tire Pressure Warning System | Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) Refer to WORK PROCEDURE [09/2023 - 12/2023] , or refer to WORK PROCEDURE [12/2023 - ] |
|
| Rear television camera assembly optical axis (Back camera position setting) | Parking Assist Monitor System | Refer to CALIBRATION [09/2023 - ] | |
| Parking assist ECU initialization | Panoramic View Monitor System | Refer to CALIBRATION [09/2023 - ] | |
| Advanced Park | Refer to CALIBRATION [09/2023 - ] |
*1: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
*2: Also necessary after performing a tire rotation.
*3: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.

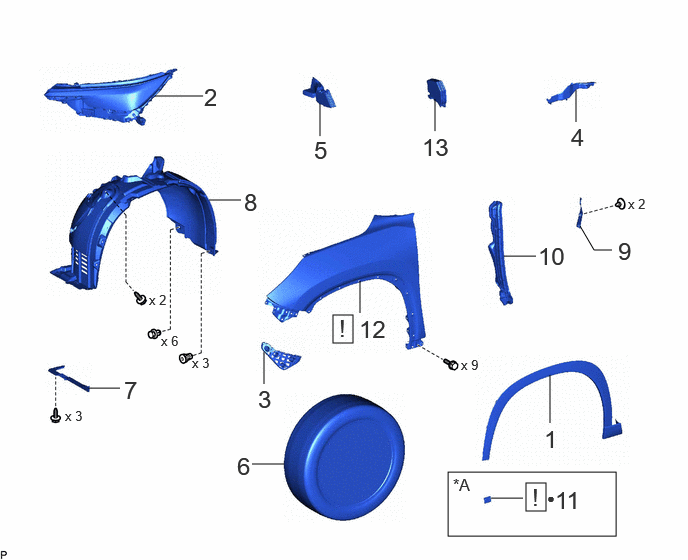

COMPONENTS (DISASSEMBLY)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | FRONT FENDER WHEEL OPENING MOULDING SUB-ASSEMBLY | 75086 | - | - | - |
| 2 | HEADLIGHT ASSEMBLY | - | - | - | - |
| 3 | FRONT BUMPER SIDE RETAINER | 52536 | - | - | - |
| 4 | FRONT FENDER TO COWL SIDE SEAL | 53867H | - | - | - |
| 5 | FRONT FENDER SPLASH SHIELD SEAL FRONT | 53892C | - | - | - |
| 6 | WHEEL ASSEMBLY | - | - | - | - |
| 7 | FRONT WHEEL OPENING EXTENSION PAD | 53852B | - | - | - |
| 8 | FRONT FENDER LINER | 53876A | - | - | - |
| 9 | FRONT FENDER SEAL | 53883B | - | - | - |
| 10 | FRONT FENDER SIDE PANEL PROTECTOR | 53828K | - | - | - |
| 11 | FRONT NO. 2 FENDER NAME PLATE | 75362 | See step 11 | - | - |
| 12 | FRONT FENDER PANEL | 53812C | See step 12 | - | - |
| 13 | NO. 2 FRONT SIDE AIR GUIDE | 53154E | - | - | - |
| *A | for Sport Package | - | - |
| • | Non-reusable part | - | - |
