Removal [09/2023 - ]: Procedure

  1. REMOVE FRONT DOOR OUTSIDE MOULDING SUB-ASSEMBLY

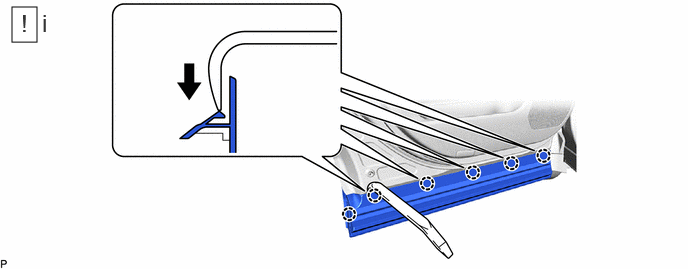

    1. GTY1199227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push - -
      1. Using a moulding remover, disengage the 6 claws.

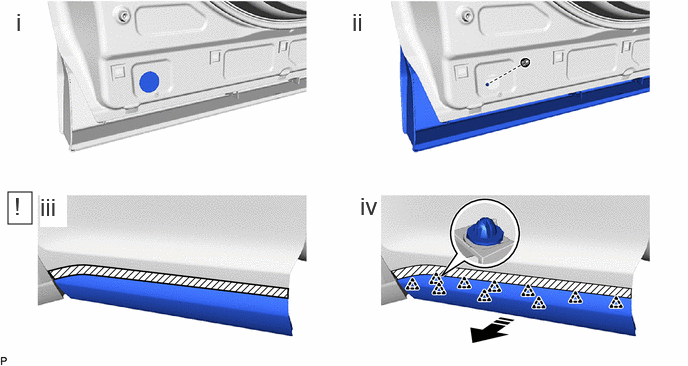

    2. GTY1196174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Remove the plug plate.
      2. Remove the nut.
      3. Apply protective tape around the front door outside moulding sub-assembly as shown in the illustration.
      4. Disengage the 10 clips to remove the front door outside moulding sub-assembly.
