Removal [09/2023 - ]: Procedure

  1. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY

    Refer to DISASSEMBLY [09/2023 - 12/2023] , or refer to DISASSEMBLY [12/2023 - ]

  2. REMOVE FRONT DOOR BELT MOULDING ASSEMBLY

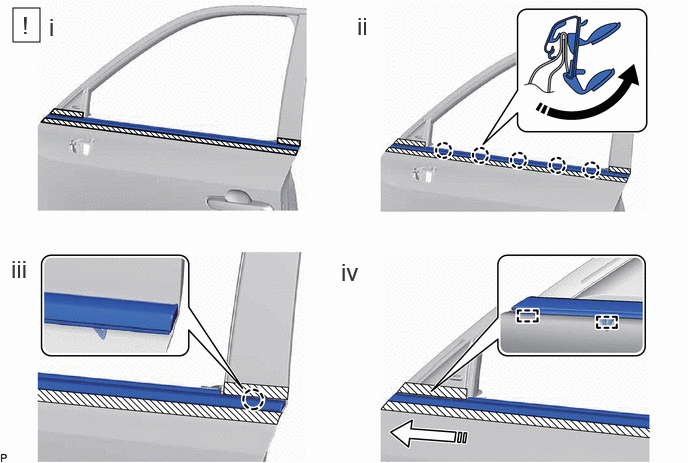

    1. GTY1195583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
      1. Apply protective tape around the front door belt moulding assembly as shown in the illustration.
      2. Disengage the 5 claws as shown in the illustration.
      3. Disengage the claw.
      4. Disengage the 2 guides and remove the front door belt moulding assembly as shown in the illustration.
