Removal [09/2023 - ]: Procedure

  1. REMOVE BACK DOOR CENTER GARNISH

    Refer to PROCEDURE - Step 1

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 2

  3. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure as for the LH side.
  4. REMOVE BACK DOOR LOCK COVER

    Refer to PROCEDURE - Step 4

  5. REMOVE BACK DOOR FINISH COVER RH
    Refer to PROCEDURE - Step 5
  6. REMOVE BACK DOOR FINISH COVER LH
    Refer to PROCEDURE - Step 6
  7. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 7

  8. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

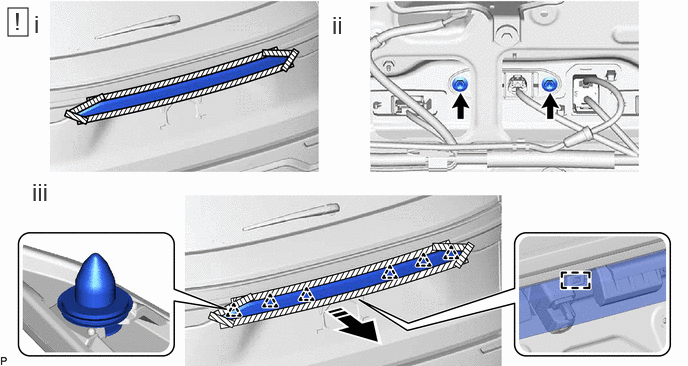

    1. GTY1235912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Apply protective tape around the back door outside garnish sub-assembly as shown in the illustration.
      2. Remove the 2 bolts.
      3. Disengage the 6 clips and guide to remove the back door outside garnish sub-assembly as shown in the illustration.
