COMPONENTS (REMOVAL)

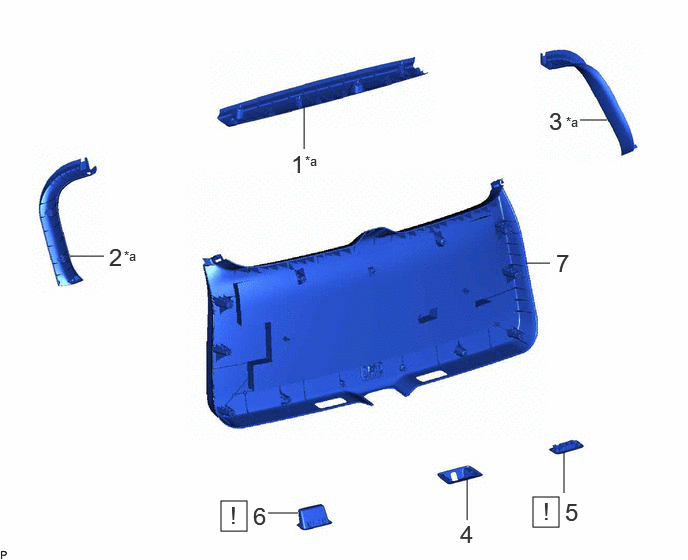

Fig 1: Back Door Outside Garnish Removal Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	BACK DOOR CENTER GARNISH	67939B	-	-	-
2	BACK DOOR SIDE GARNISH LH	67938A	-	-	-
3	BACK DOOR SIDE GARNISH RH	67937B	-	-	-
4	BACK DOOR LOCK COVER	69321	-	-	-
5	BACK DOOR FINISH COVER RH	75837D	See step 5	-	-
6	BACK DOOR FINISH COVER LH	75838D	See step 6	-	-
7	BACK DOOR TRIM PANEL ASSEMBLY	64780A	-	-	-

HINT:
As the illustration shown is an example, the actual details may differ.

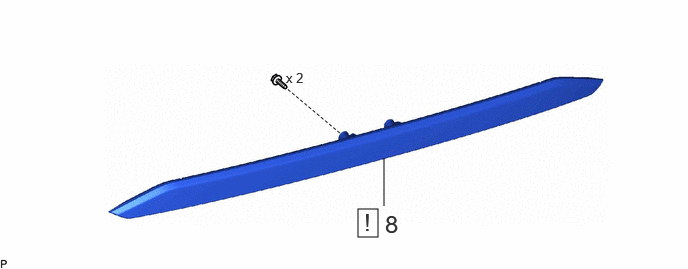

Fig 2: Back Door Outside Garnish Removal Components (2 Of 2)

Procedure		Part Name Code
8	BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY	76801	See step 8	-	-
