Reassembly [09/2023 - ]: Procedure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

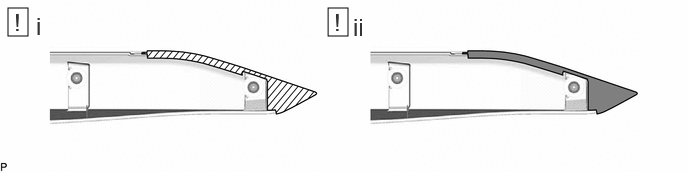

Cleaning Area

Primer

1. Clean the back door outside garnish surface.

   1. Using a heat light, heat the double-sided tape remaining on the back door outside garnish and back door outside garnish moulding protector LH.

   HEATING TEMPERATURE



   Area	Temperature	Area	Temperature
   Back Door Garnish	20 to 30 °C (68 to 86 °F)	Back Door Outside Garnish Moulding Protector LH	20 to 30 °C (68 to 86 °F)

   WARNING:

   • Do not touch the heat light and heated parts, touching the heat light may result in burns.
   • Touching heated parts for a long time may result in burns.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Heated Part
   *b	Heat Light

   NOTE:

   Do not heat the back door outside garnish excessively.

   2. Remove any remaining double-sided tape from the back door outside garnish.

   3. Wipe off any tape adhesive residue with cleaner.

2. Apply primer to the back door outside garnish on the installation area of the back door outside garnish moulding protector LH.

   1. Using a brush or felt, apply primer or equivalent to the back door outside garnish moulding protector LH installation area.

   NOTE:

   • Replace the brush or felt if it is dirty or has become hardened.
   • Do not apply primer to the painted side.
   • Do not touch the back door outside garnish until the primer has dried.

   2. Let the primer dry sufficiently.

   NOTE:

   Do not touch applied surfaces until the primer is dry.

   Recommended drying time

   10 minutes or more (at 23°C (73°F))

   3. Confirm that the primer has completely dried by touching the back door outside garnish. Then remove the tape.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Measurement

1. Install a new back door outside garnish moulding protectors LH.

   1. Using a heat light, heat the back door outside garnish surface.

   2. Remove the release paper from the back door outside garnish moulding protector LH.

   HINT:

   After removing the release paper, keep the exposed adhesive free from foreign matter.

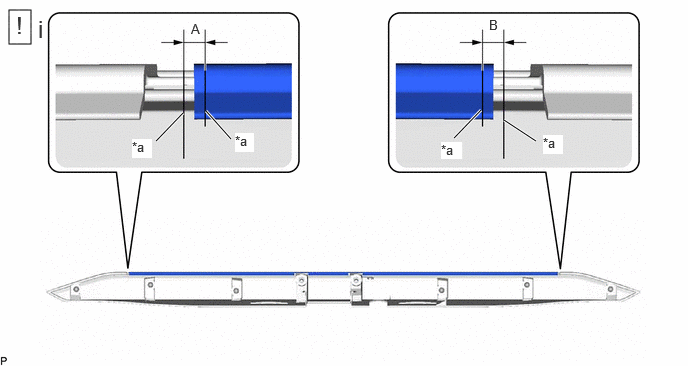

   3. Install the back door outside garnish moulding protector LH as shown in the illustration.

   HINT:

   • Apply the back door outside garnish moulding protector along the scribed line on the back door outside garnish.
   • Press the back door outside garnish moulding protector firmly to install it.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

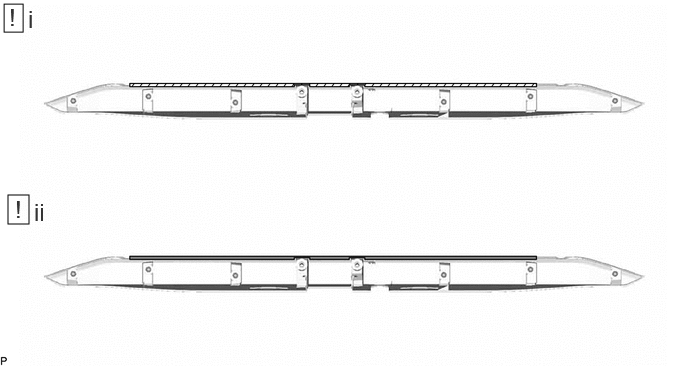

Cleaning Area

Primer

1. Clean the back door outside garnish surface.

   1. Using a heat light, heat the double-sided tape remaining on the back door outside garnish and back door garnish moulding upper protector.

   HEATING TEMPERATURE



   Area	Temperature	Area	Temperature
   Back Door Garnish	20 to 30 °C (68 to 86 °F)	Back Door Garnish Moulding Upper Protector	20 to 30 °C (68 to 86 °F)

   WARNING:

   • Do not touch the heat light and heated parts, touching the heat light may result in burns.
   • Touching heated parts for a long time may result in burns.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Heated Part
   *b	Heat Light

   NOTE:

   Do not heat the back door outside garnish excessively.

   2. Remove any remaining double-sided tape from the back door outside garnish.

   3. Wipe off any tape adhesive residue with cleaner.

2. Apply primer to the back door outside garnish on the installation area of the back door garnish moulding upper protector.

   1. Using a brush or felt, apply primer or equivalent to the back door garnish moulding upper protector installation area.

   NOTE:

   • Replace the brush or felt if it is dirty or has become hardened.
   • Do not apply primer to the painted side.
   • Do not touch the back door outside garnish until the primer has dried.

   2. Let the primer dry sufficiently.

   NOTE:

   Do not touch applied surfaces until the primer is dry.

   Recommended drying time

   10 minutes or more (at 23°C (73°F))

   3. Confirm that the primer has completely dried by touching the back door outside garnish. Then remove the tape.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Measurement

1. Install a new back door garnish moulding upper protector.

   1. Using a heat light, heat the back door outside garnish surface.

   2. Remove the release paper from the back door garnish moulding upper protector.

   HINT:

   After removing the release paper, keep the exposed adhesive free from foreign matter.

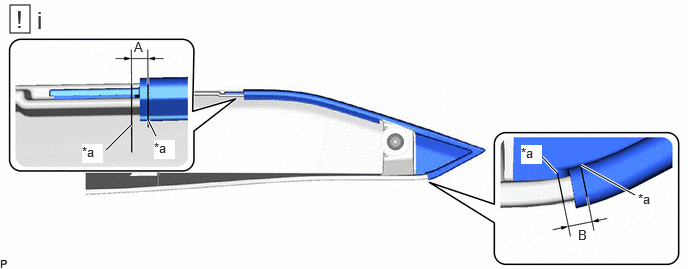

   3. Install the back door garnish moulding upper protector as shown in the illustration.

   HINT:

   • Apply the back door garnish moulding upper protector along the scribed line on the back door outside garnish.
   • Press the back door garnish moulding upper protector firmly to install it.
