Disassembly [09/2023 - ]: Procedure

  1. REMOVE BACK DOOR GARNISH MOULDING UPPER PROTECTOR
    1. GTY1234542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

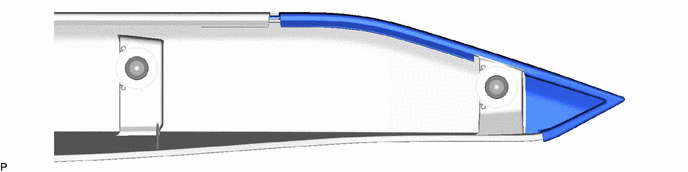

  2. REMOVE BACK DOOR GARNISH MOULDING PROTECTOR LH
    1. GTY1234544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE BACK DOOR GARNISH MOULDING PROTECTOR RH
    1. Use the same procedure as for the LH side.
