Removal [09/2023 - ]: Procedure

  1. REMOVE REAR OUTER SEAT TRACK BRACKET COVER

    Refer to PROCEDURE - Step 11

  2. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 12

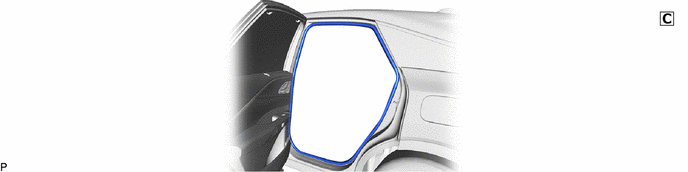

  3. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP
    1. GTY1134791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
