Removal [09/2023 - ]: Procedure

  1. REMOVE DOOR SCUFF PLATE ASSEMBLY

    Refer to PROCEDURE - Step 7

  2. REMOVE COWL SIDE TRIM SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

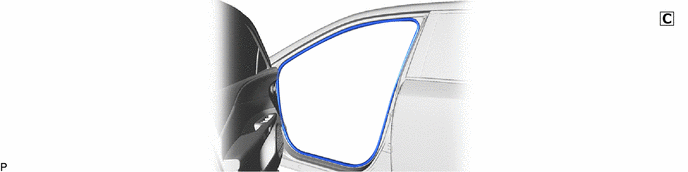

  3. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP
    1. GTY1134357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
