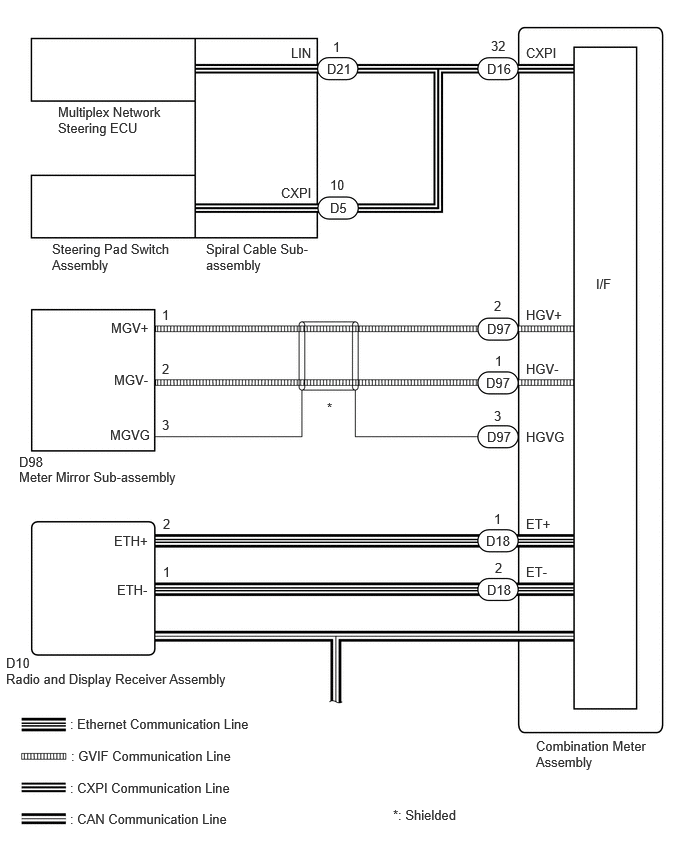

Steering Pad Switch with Touch Detection Malfunction [09/2023 - 12/2023]: Wiring Diagram

GTY1231355

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY1137261

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
