DTC B1512-87: Lost Communication with Steering Switch Control Module Missing Message; DTC B1513-87: Lost Communication with Steering Switch Control Module (Multiplex Switch)Missing Message [09/2023 - ]: Wiring Diagram

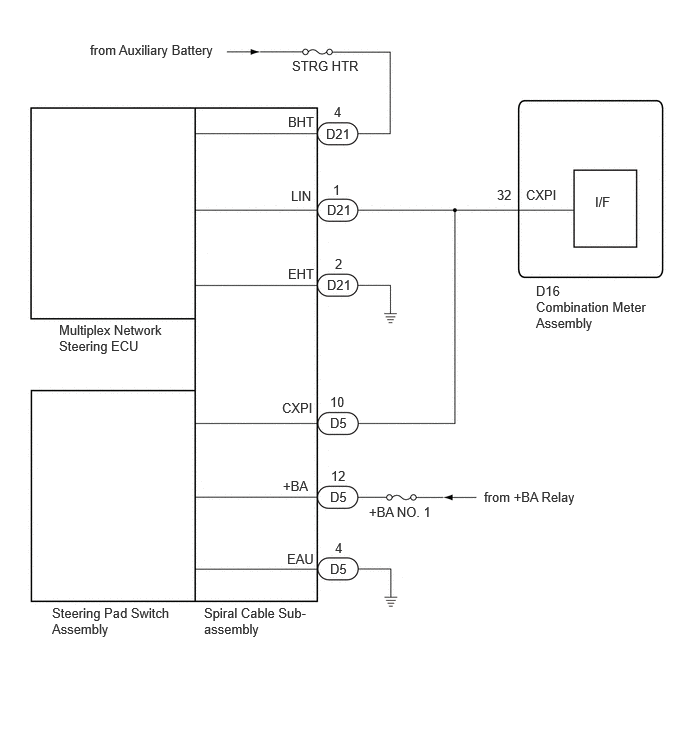

w/ Touch Tracer Operation

GTY1232957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/o Touch Tracer Operation

GTY1230329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
