Meter / Gauge System - Diagnostic Codes & Symptom Tests (1 Of 2)
>>
Meter / Gauge System
>>
DTC B1508-19: Turn Signal/Hazard Flasher Circuit Current Above Threshold [09/2023 - ]
>>

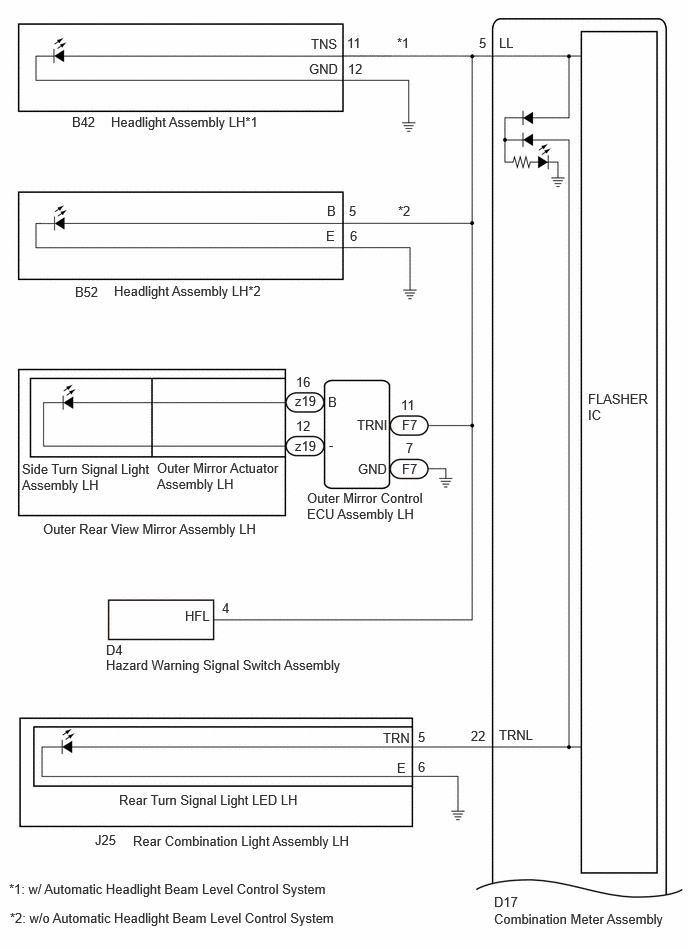

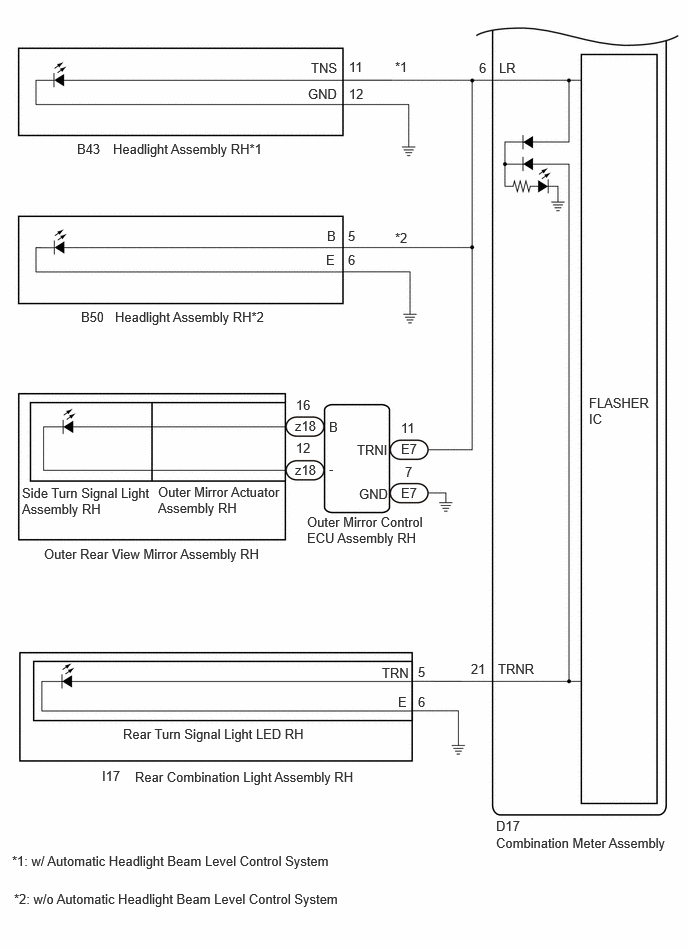

Wiring Diagram
DTC B1508-19: Turn Signal/Hazard Flasher Circuit Current Above Threshold [09/2023 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
