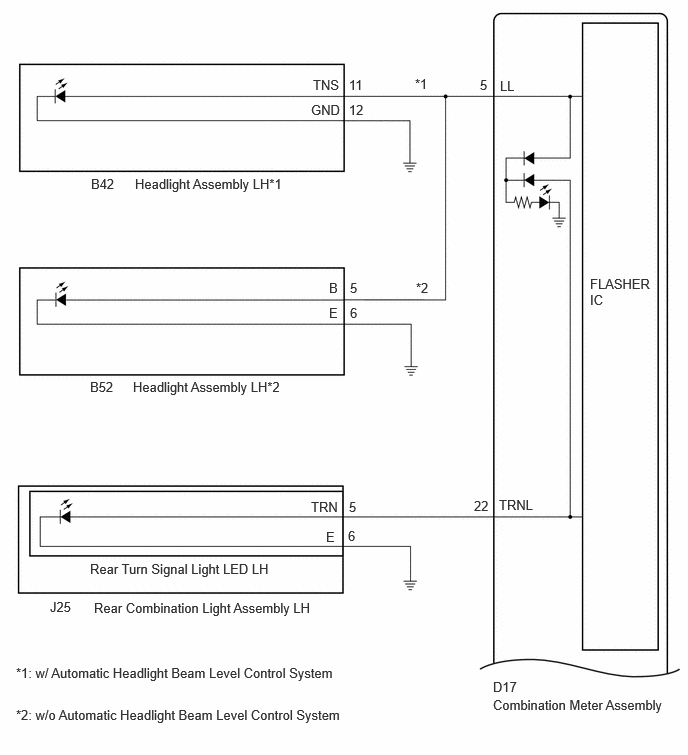

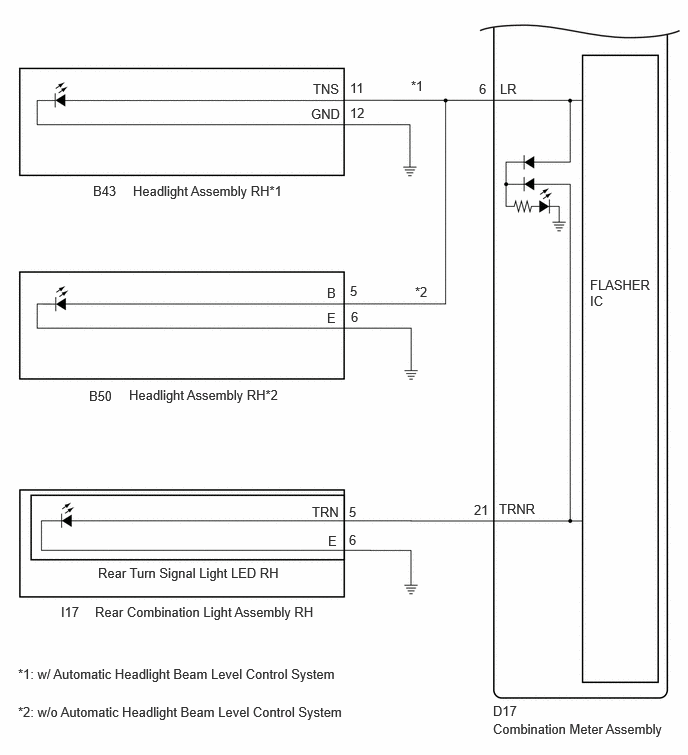

DTC B1507-18: Turn Signal Light Circuit Current Below Threshold [09/2023 - ]: Wiring Diagram

GTY1195941

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY1198649

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
