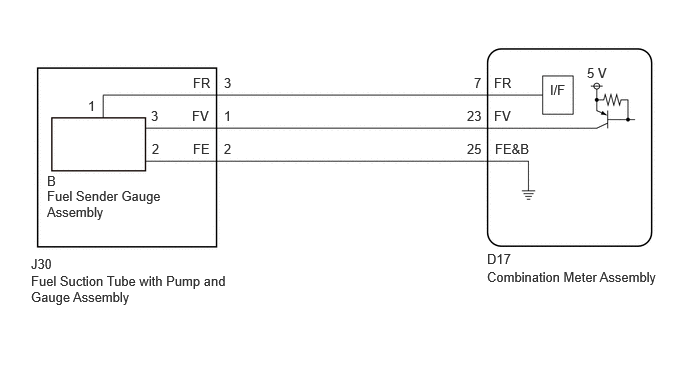

DTC B1500-13: Fuel Sender Circuit Open [09/2023 - 12/2023]: Wiring Diagram

for T24A-FTS (for 1Motor-HEV Model)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for Gasoline Model, for PHEV Model

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
