Inspection [09/2023 - ]: Procedure
- INSPECT TRIP SWITCH
- Measure the resistance according to the value(s) in the table below.

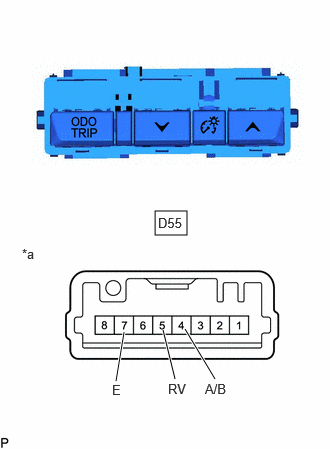

*a Component without harness connected
(Trip Switch)Standard Resistance
Tester Connection Condition Specified Condition D55-5 (RV) - D55-7 (E) Light control rheostat up switch pressed Below 50 Ω D55-5 (RV) - D55-7 (E) Light control rheostat up switch not pressed 10 kΩ or higher D55-5 (RV) - D55-7 (E) Light control rheostat down switch pressed 1.71 to 1.89 kΩ D55-5 (RV) - D55-7 (E) Light control rheostat down switch not pressed 10 kΩ or higher D55-4 (A/B) - D55-7 (E) ODO/TRIP switch pressed Below 50 Ω D55-4 (A/B) - D55-7 (E) ODO/TRIP switch not pressed 10 kΩ or higher If the result is not as specified, replace the trip switch.
- Illumination Inspection

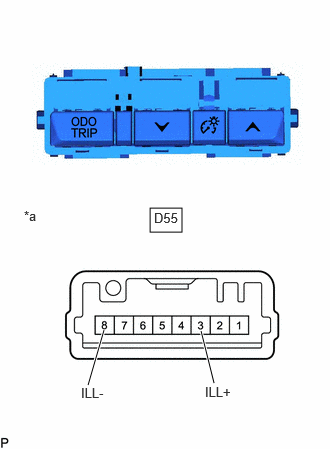

*a Component without harness connected
(Trip Switch)Apply auxiliary battery voltage to the trip switch and check that it illuminates.
OK
Tester Connection Specified Condition Auxiliary battery positive (+) → D55-3 (ILL+)
Auxiliary battery negative (-) → D55-8 (ILL-)Illuminates If the result is not as specified, replace the trip switch.
- Measure the resistance according to the value(s) in the table below.
